Question: Consider the frame. a ) Determine the horizontal and vertical components of force which the pin at C exerts on member A C . The

Consider the frame.

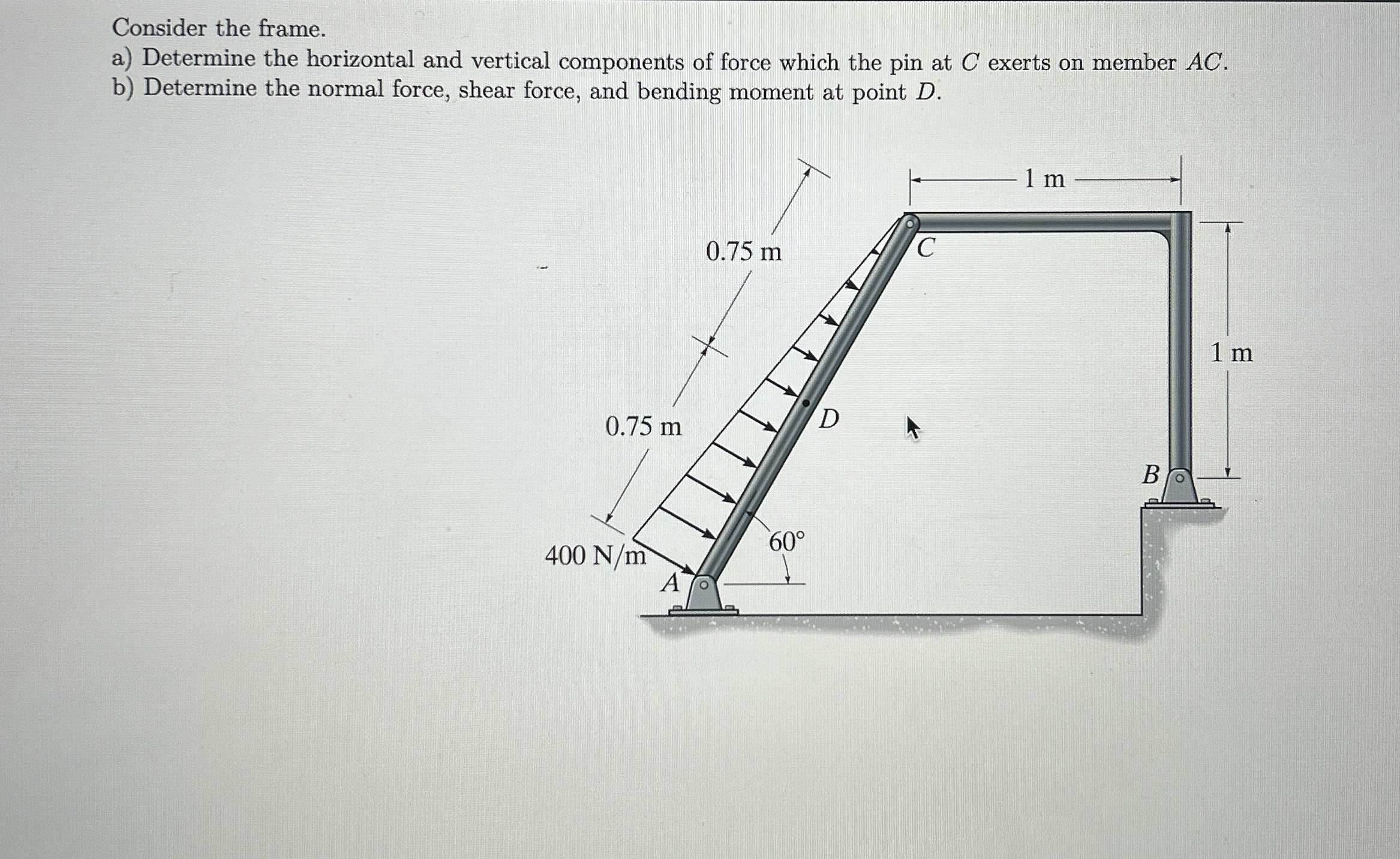

a) Determine the horizontal and vertical components of force which the pin at C exerts on member AC. The total length of AC is 1.5 meters.
b) Determine the normal force, shear force, and bending moment at point D.
Consider the frame. a ) Determine the horizontal

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
