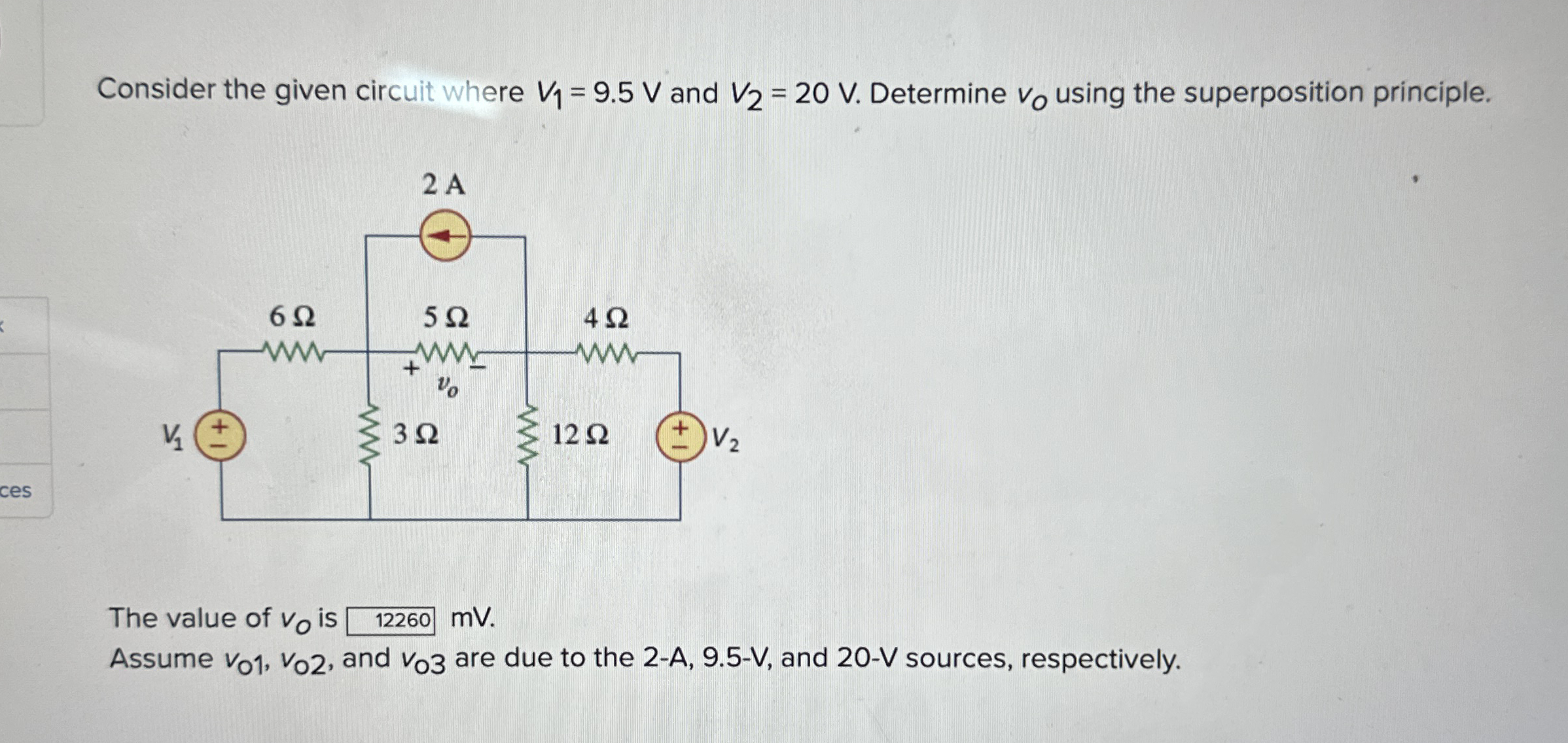

Question: Consider the given circuit where V 1 = 9 . 5 V and V 2 = 2 0 V . Determine v 0 using the

Consider the given circuit where V1=9.5V and V2=20V. Determine v0 using the superposition principle.
The value of v0 is mV .
Assume v01,v0, and v03 are due to the 2-A,9.5-V, and 20-V sources, respectively.
Consider the given circuit where V 1 = 9 . 5 V

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
