Question: Consider the mass spectrometer shown schematically in the figure below. The magnitude of the electric field between the plates of the velocity selector is 2.60

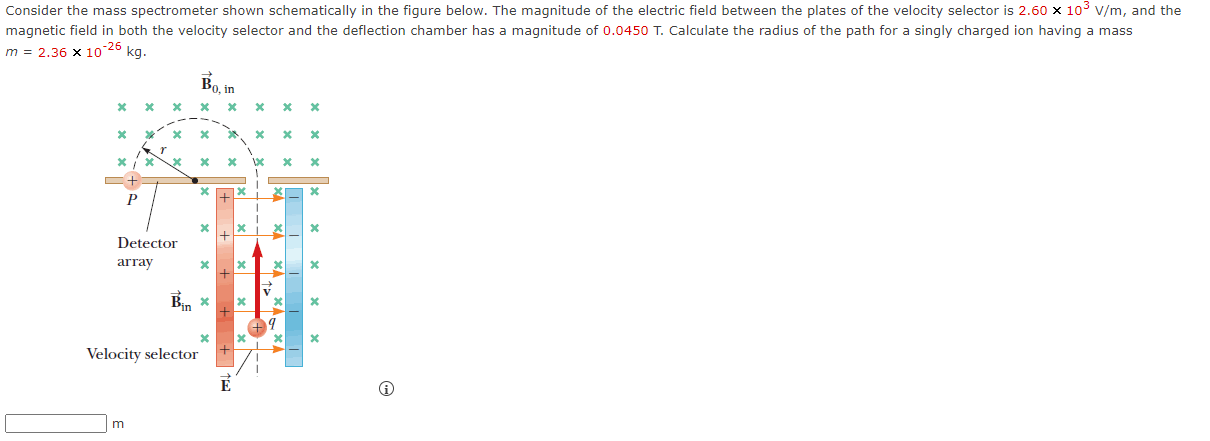

Consider the mass spectrometer shown schematically in the figure below. The magnitude of the electric field between the plates of the velocity selector is 2.60 x 10% v/m, and the m=2.36 x 102" kg. i magnetic field in both the velocity selector and the deflection chamber has a magnitude of 0.0450 T. Calculate the radius of the path for a singly charged ion having a mass = BO_. in X M X X X - - ~ xx'\\xxx / A x, % X W X x + P Detector array Velocity selector @ L Jm

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
