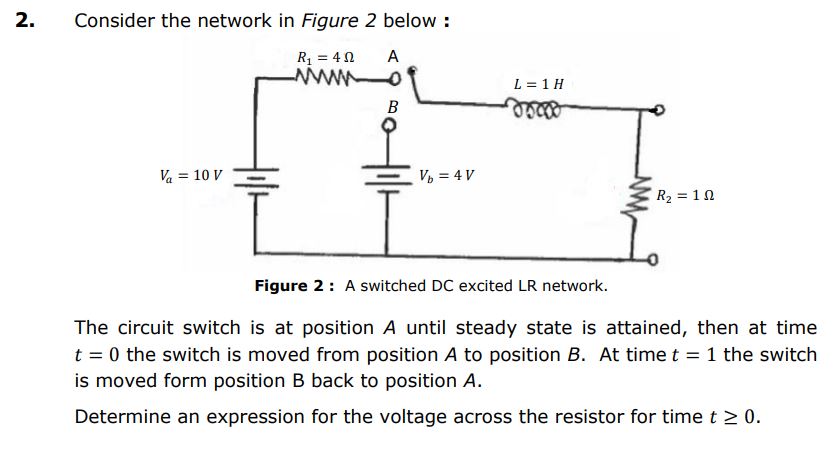

Consider the network in Figure 2 below :
Figure 2: A switched DC excited LR network.
The circuit switch is at position ( A ) until steady state is attained, then at time ( t=0) the switch is moved from position ( A ) to position ( B ). At time ( t=1) the switch is moved form position B back to position ( A ).
Determine an expression for the voltage across the resistor for time t is greater or equal to zero
