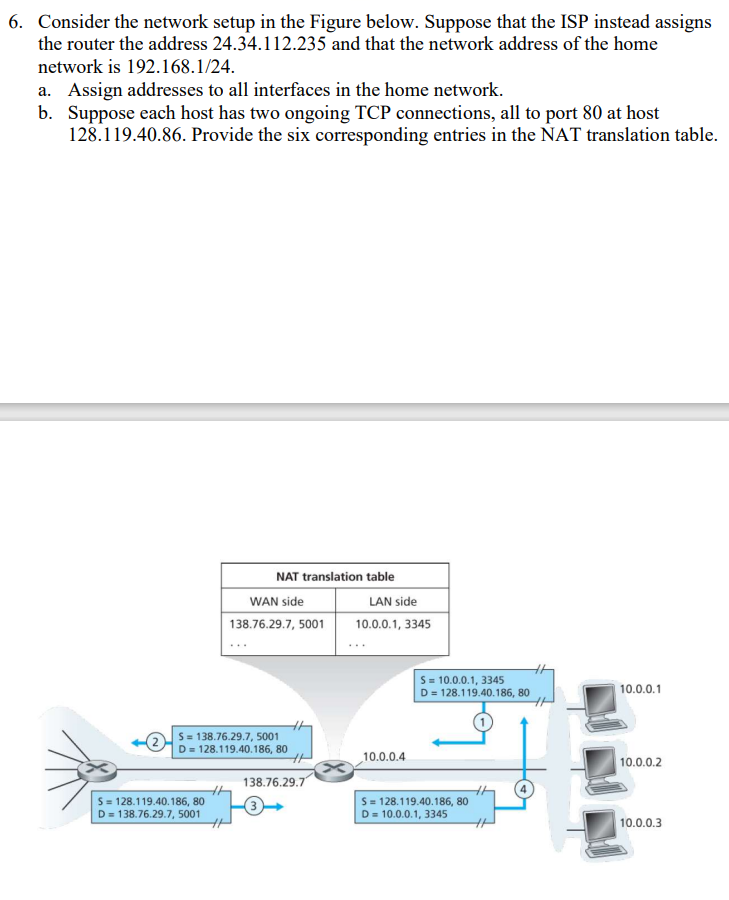

Consider the network setup in the Figure below. Suppose that the ISP instead assigns

the router the address $24\mathrm{.}34\mathrm{.}112\mathrm{.}235$ and that the network address of the home

network is $192\mathrm{.}168.\frac{1}{24}.$

a$.$ Assign addresses to all interfaces in the home network.

b$.$ Suppose each host has two ongoing TCP connections, all to port $80$ at host

$128\mathrm{.}119\mathrm{.}40\mathrm{.}86.$ Provide the six corresponding entries in the NAT translation table.
