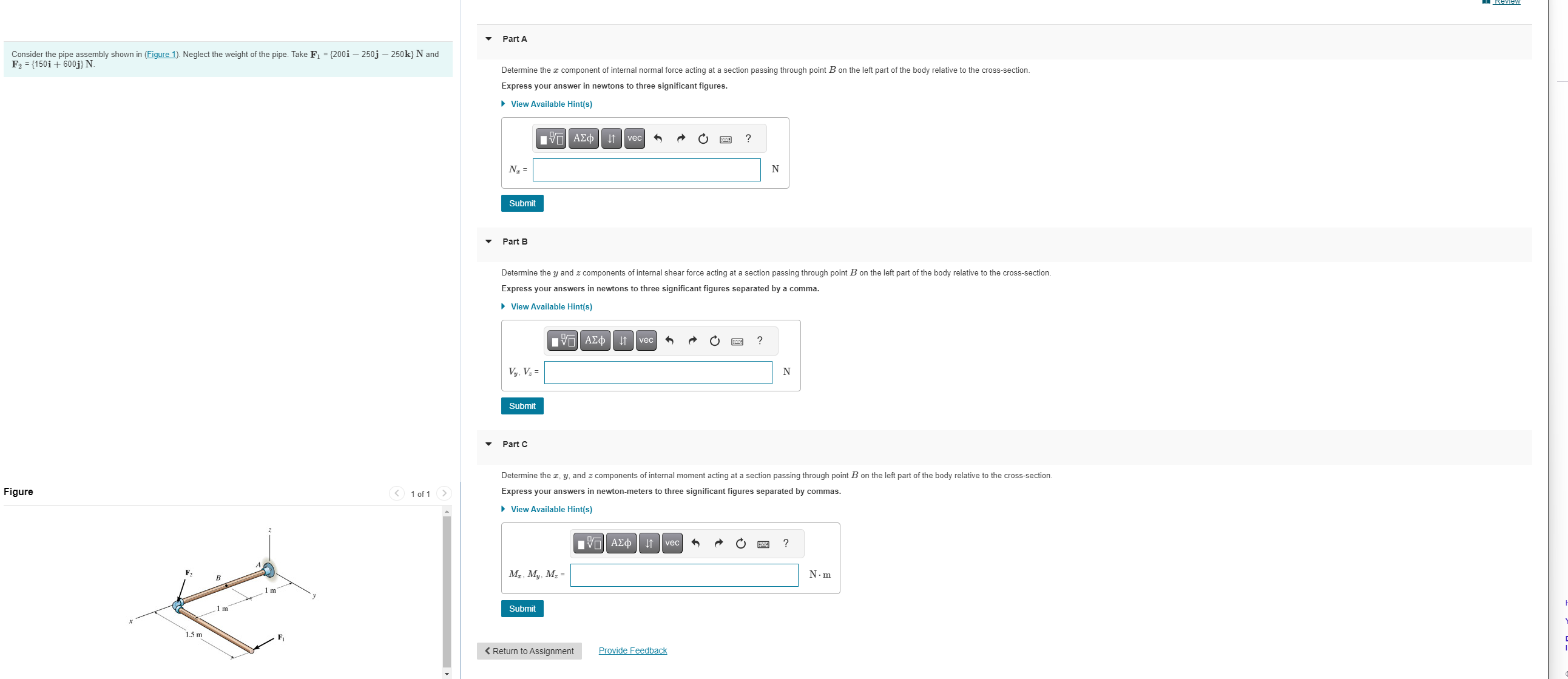

Consider the pipe assembly shown in $($Figure $1).$ Neglect the weight of the pipe. Take F$\_(1)=\{200$i$-250$j$-250$k$\}$N and

F$\_(2)=\{150$i$+600$j$\}$N

Part A

Determine the x component of internal normal force acting at a section passing through point B on the left part of the body relative to the cross$-$section.

Express your answer in newtons to three significant figures.

View Available Hint$($s$)$

Part B

Determine the y and z components of internal shear force acting at a section passing through point B on the left part of the body relative to the cross$-$section

Express your answers in newtons to three significant figures separated by a comma.

V View Available Hint$($s$)$

V$\_($y$),$V$\_($z$)$

Part C

Determine the x$,$y$,$ and z components of internal moment acting at a section passing through point B on the left part of the body relative to the cross$-$section

Express your answers in newton$-$meters to three significant figures separated by commas.

View Available Hint$($s$)$

M$\_($x$),$M$\_($y$),$M$\_($z$)=$

N$*$m
