Question: Consider the ROM table ( AKA State Transition Table ) below . If you created the associated programming table, what would the DATA entry be

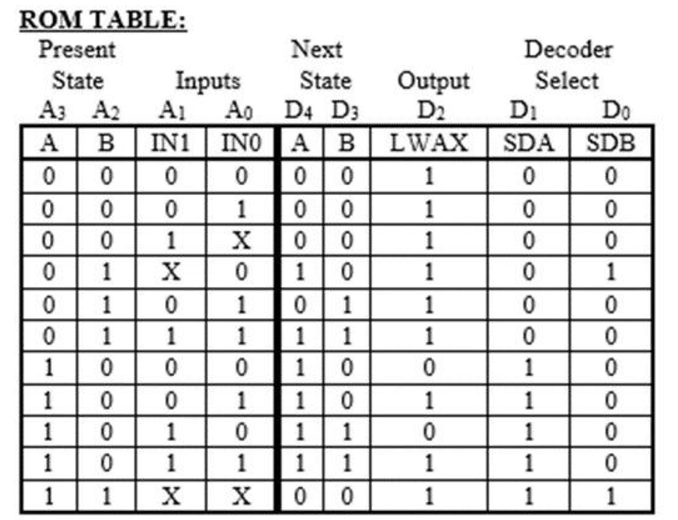

Consider the ROM table (AKA State Transition Table)below. If you created the associated programming table, what would the DATA entry be for the ADDRESS =2H?
A)07 Hex
B)04 Hex
C)1A Hex
D)1E Hex
Consider the ROM table ( AKA State Transition

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
