Consider the schematic circuit shown, 1. Determine whether it is a pneumatic or hydraulic circuit? 2....
Fantastic news! We've Found the answer you've been seeking!
Question:
![image text in transcribed](https://s3.amazonaws.com/si.experts.images/answers/2024/05/6647808940249_993664780891719d.jpg)
Transcribed Image Text:

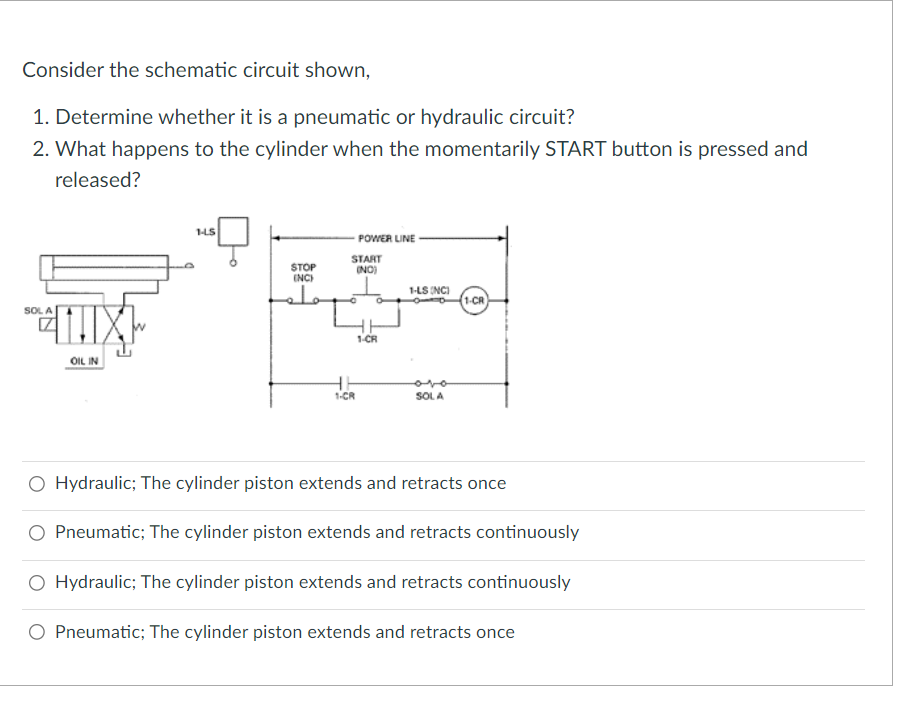

Consider the schematic circuit shown, 1. Determine whether it is a pneumatic or hydraulic circuit? 2. What happens to the cylinder when the momentarily START button is pressed and released? SOL OIL IN 1-LS POWER LINE START STOP ENCH (NO) 1-LS (NC) 1-CR 1-CR 1-CR SOLA Hydraulic; The cylinder piston extends and retracts once Pneumatic; The cylinder piston extends and retracts continuously Hydraulic; The cylinder piston extends and retracts continuously Pneumatic; The cylinder piston extends and retracts once Consider the schematic circuit shown, 1. Determine whether it is a pneumatic or hydraulic circuit? 2. What happens to the cylinder when the momentarily START button is pressed and released? SOL OIL IN 1-LS POWER LINE START STOP ENCH (NO) 1-LS (NC) 1-CR 1-CR 1-CR SOLA Hydraulic; The cylinder piston extends and retracts once Pneumatic; The cylinder piston extends and retracts continuously Hydraulic; The cylinder piston extends and retracts continuously Pneumatic; The cylinder piston extends and retracts once
Expert Answer:
Posted Date:
Students also viewed these mechanical engineering questions
-
