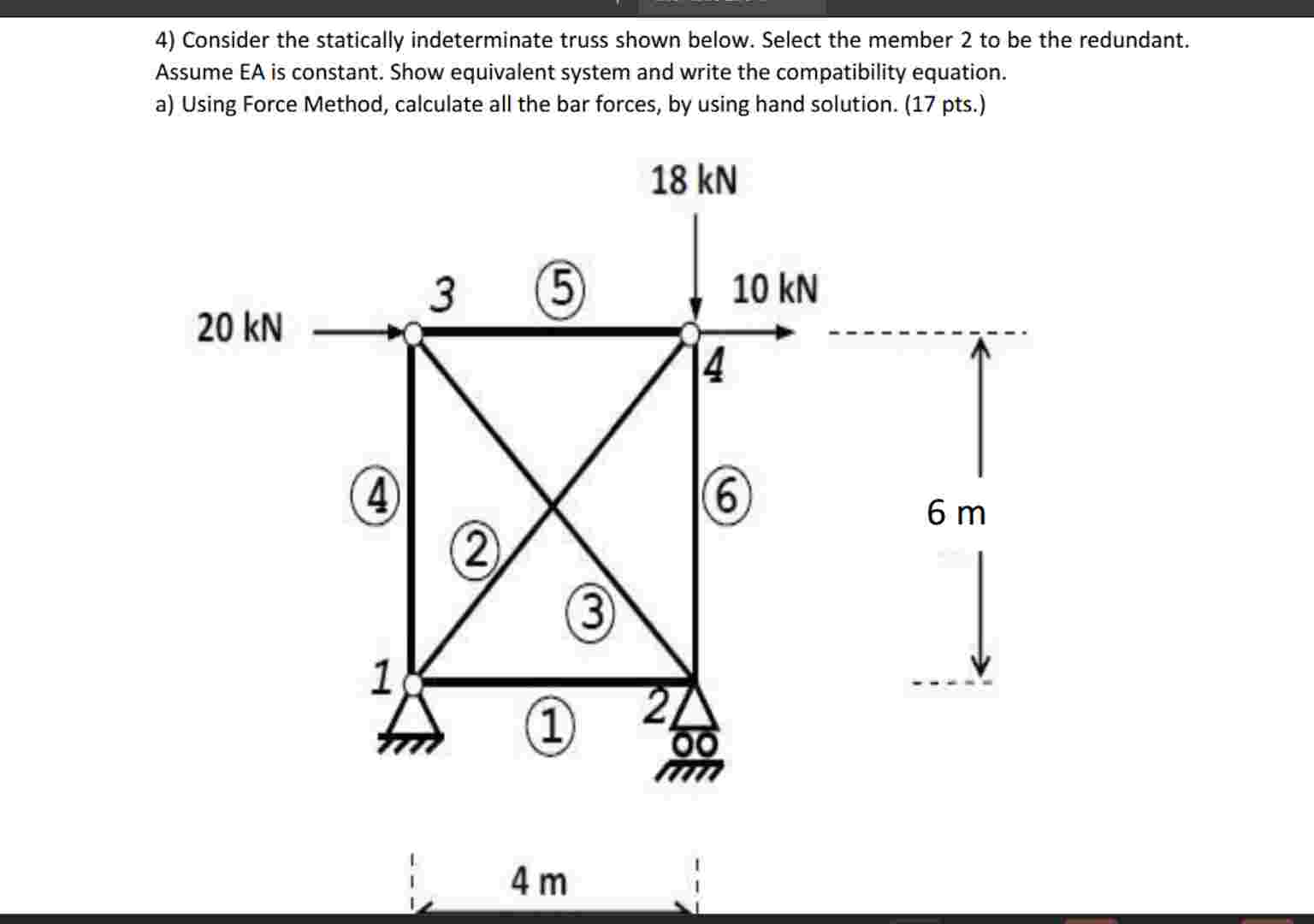

Question: Consider the statically indeterminate truss shown below. Select the member 2 to be the redundant. Assume EA is constant. Show equivalent system and write the

Consider the statically indeterminate truss shown below. Select the member 2 to be the redundant.
Assume EA is constant. Show equivalent system and write the compatibility equation.
a) Using Force Method, calculate all the bar forces, by using hand solution.
Consider the statically indeterminate truss shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
