Consider the structure shown in $($Figure $1).$ Assume the members are pin$-$connected at $A,B,$ and $C.$ Suppose that $P=6\mathrm{.}5kN.$

Part A

Determine the horizontal component of reaction at the support $A.$

Express your answer to three significant figures and include the appropriate units.

$A_x=$ Value

Request Answer

Part B

Determine the vertical component of reaction at the support $A.$

Express your answer to three significant figures and include the appropriate units.

$A_y=$ Value Units

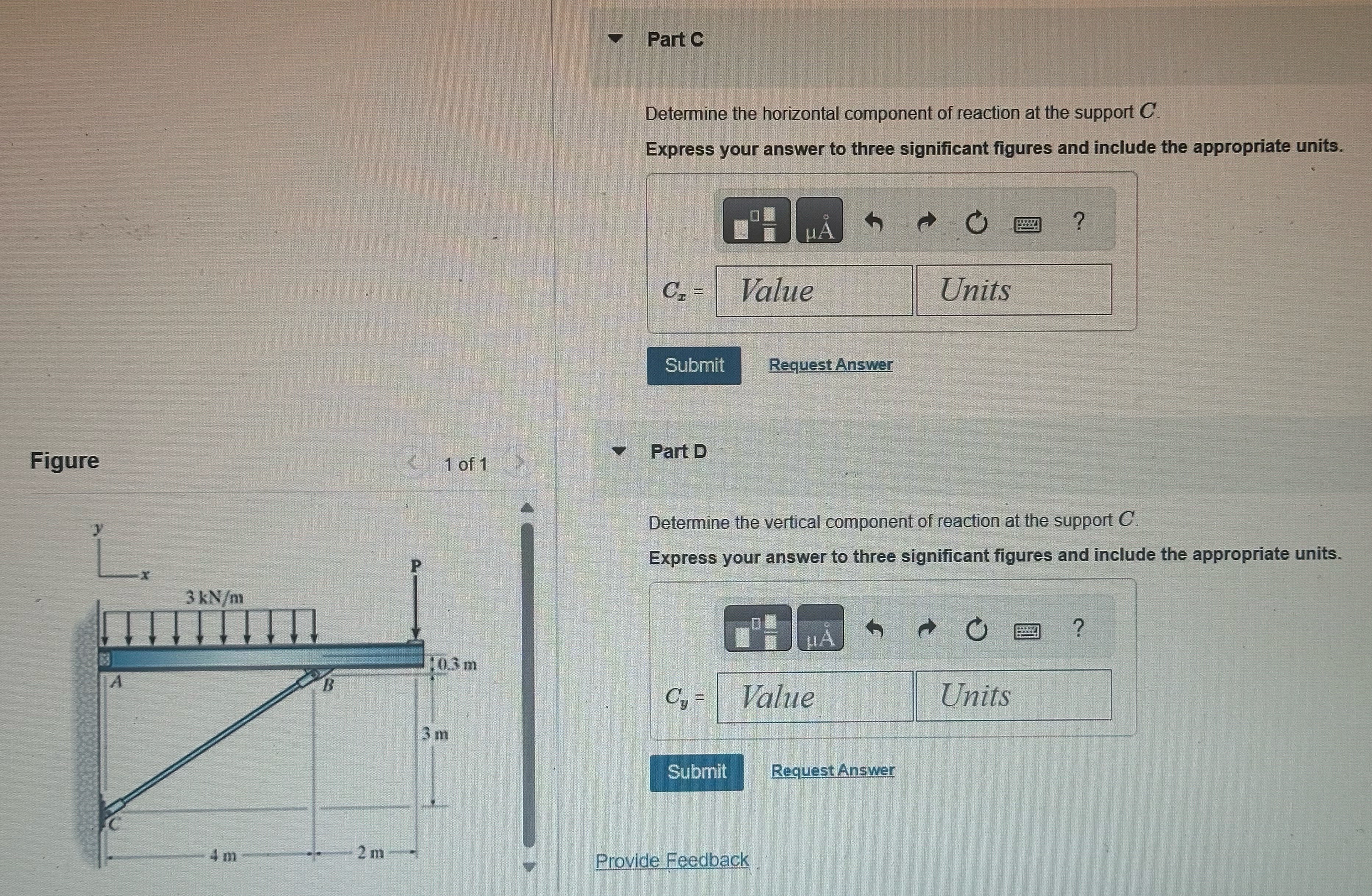

Figure

$1$ of $1$

Request Answer

Part C

Determine the horizontal component of reaction at the support $C.$

Express your answer to three significant figures and include the appropriate units.

Figure

$1$ of $1$

Part D

Request Answer

Determine the vertical component of reaction at the support $C.$

Express your answer to three significant figures and include the appropriate units.

$C_y=$

Request Answer

Provide FeedbackConsider the structure shown in $($Figure $1).$ Assume the members are pin$-$connected at $A,B,$ and $C.$ Suppose that $P=6\mathrm{.}5kN.$

Part A

Determine the horizontal component of reaction at the support $A.$

Express your answer to three significant figures and include the appropriate units.

$A_x=$ Value

Request Answer

Part B

Determine the vertical component of reaction at the support $A.$

Express your answer to three significant figures and include the appropriate units.

$A_y=$ Value Units

Figure

$1$ of $1$

Request Answer

Part C

Determine the horizontal component of reaction at the support $C.$

Express your answer to three significant figures and include the appropriate units.

$C_x=$

Request Answer

Figure

$1$ of $1$

Part D

Determine the vertical component of reaction at the support $C.$

Express your answer to three significant figures and include the appropriate units.

$C_y=$

Parts A$,$ B$,$ C$,$ and D$.$ PLEASE!
