Question: Consider the system shown a ) Is THE CLOSED - LCOP system STABLE? b ) WHAT IS THE CRDER OIE THE CLOSED - LOEP system?

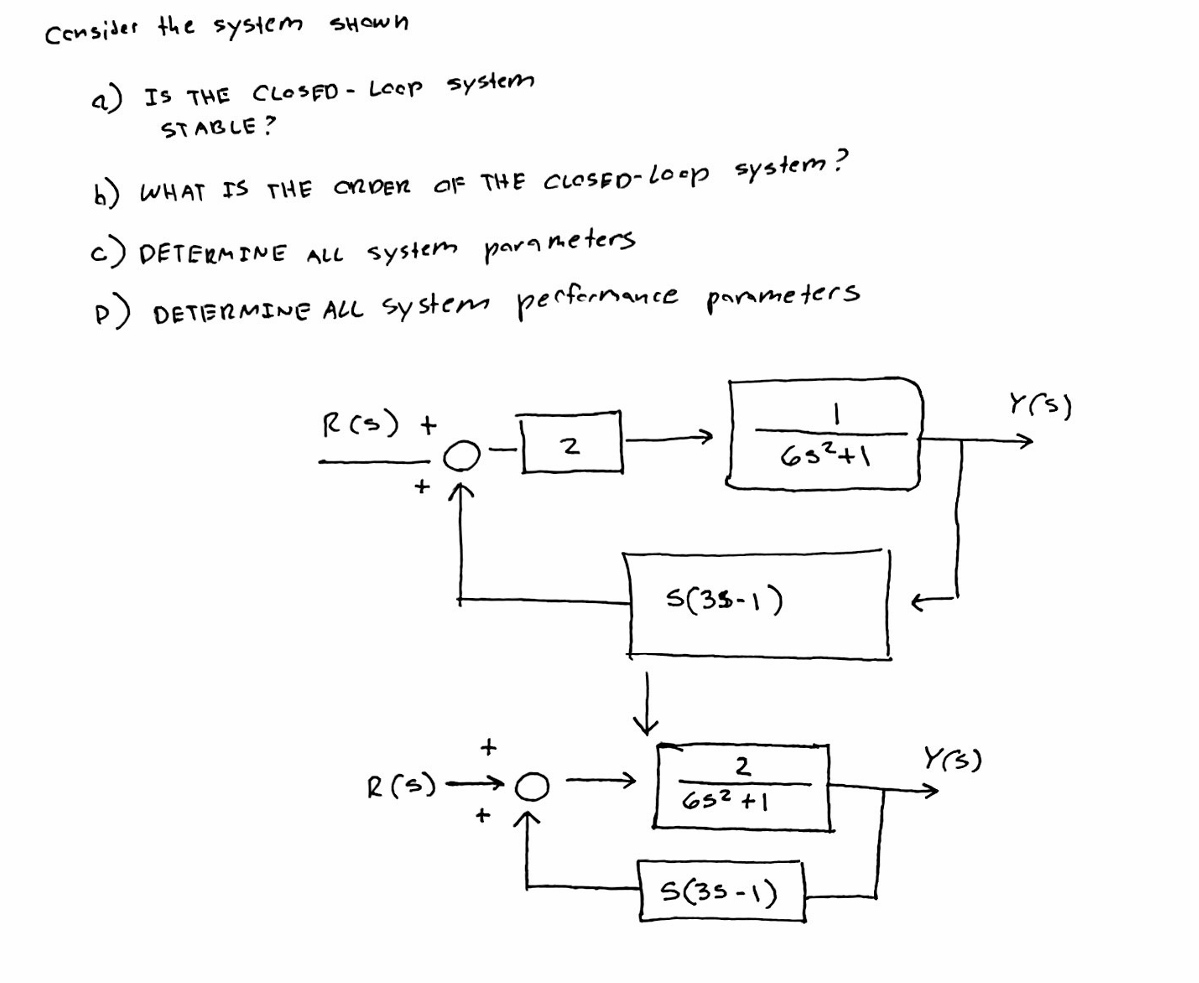

Consider the system shown
a) Is THE CLOSED-LCOP system
STABLE?
b) WHAT IS THE CRDER OIE THE CLOSED-LOEP system?
c) DETERMINE ALL system parameters
D) DETERMINE ALL System perfermance parameters
Consider the system shown a ) Is THE CLOSED -

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
