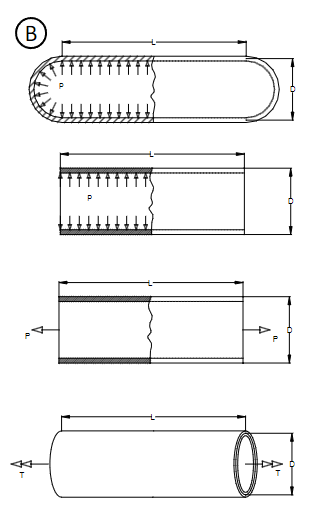

Consider the thin walled cylinders $($ closed and

open ended$)$ shown in the figures. The diameter

shown in the figures is the $$mean$$ diameter. Each

of the thin walled cylinders are made of $2024-$T$4$

Aluminum, with diameter D$=10$inches and

thickness t$=0\mathrm{.}1$inches. For the given loading

Compute the external loads $($pressure p $/$ axial

load P $/$ Torque T$)$ at onset of yielding based

on

$1.$ Tresca criterion

$2.$ Von Mises criterion
