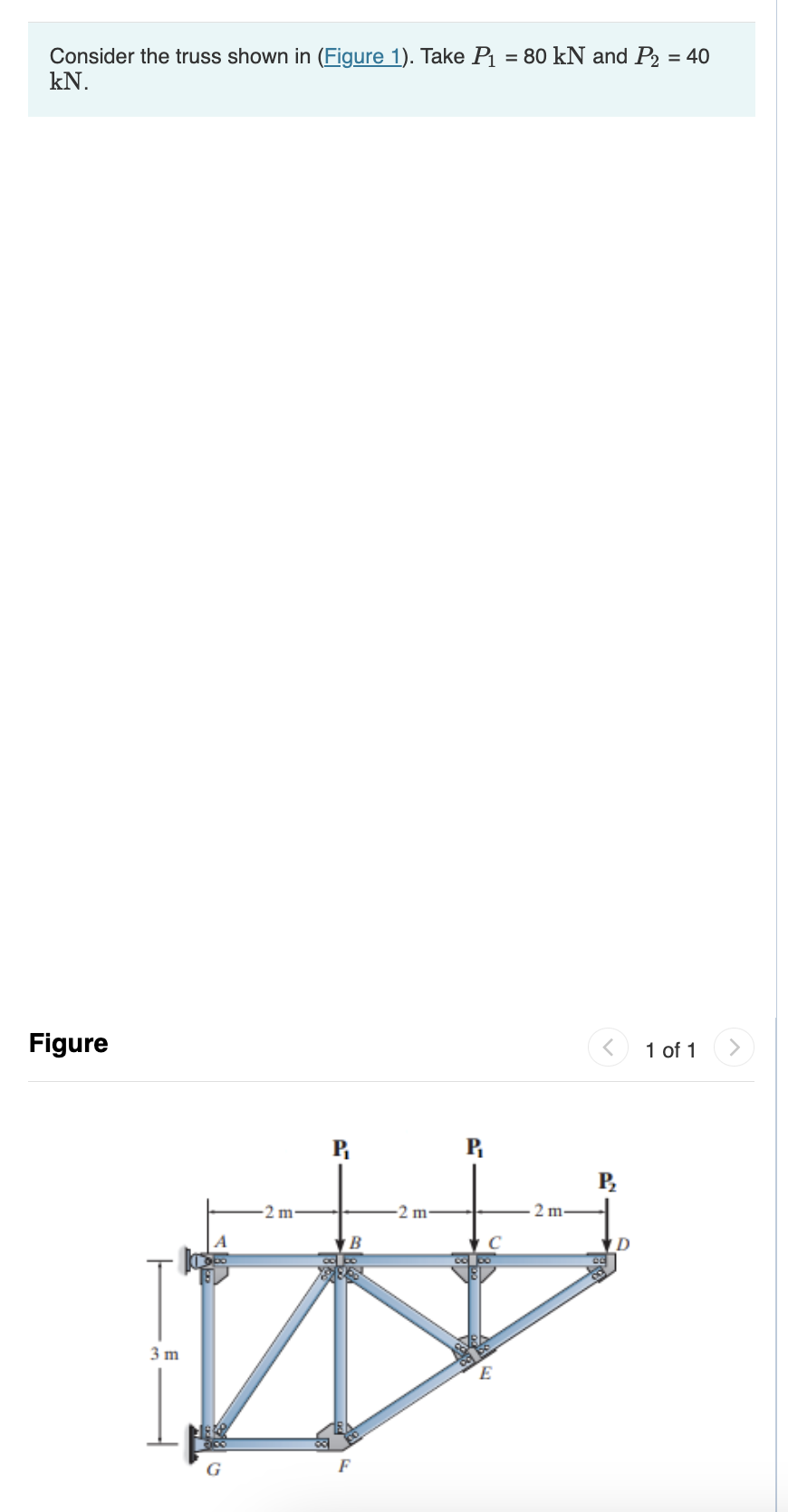

Question: Consider the truss shown in ( Figure 1 ) . Take P 1 = 8 0 kN and P 2 = 4 0 kN .

Consider the truss shown in (Figure 1). Take P1=80 kN and P2=40 kN. Determine the force in member GF of the truss. Indicate if the member is in tension or compression. Consider the truss shown in (Figure 1). Take P1=80kN and P2=40
kN.
