Question: Construct a precedence graph for the following program: S 1 : x : = 0 S 2 : y : = 1 S 3 :

Construct a precedence graph for the following program:
S1 : x :=0
S2 : y :=1
S3 : y := x
S4 : z := x +1
S5 : x := z
S6 : y :=3
S7 : z :=0

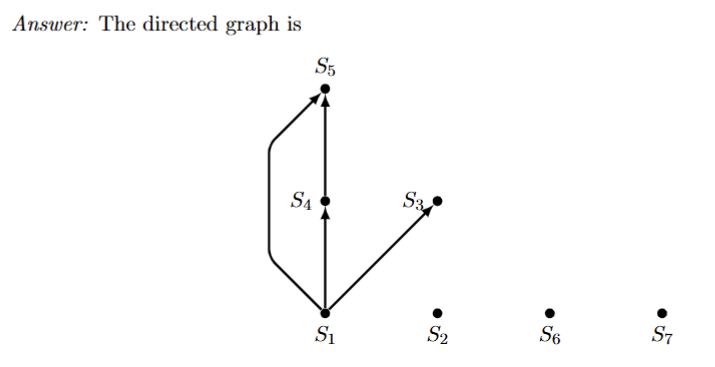

Answer: The directed graph is
S_(2)^(*)
S_(6)^(*)
S_(7)^(*)
Construct a precedence graph for the following

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
