Question: Convert the following E-R diagram into a relational data model. MName FNamo LName SName DOB DName Sid DCode DEPT 1 DOffice HAS N STUDENT DPhone

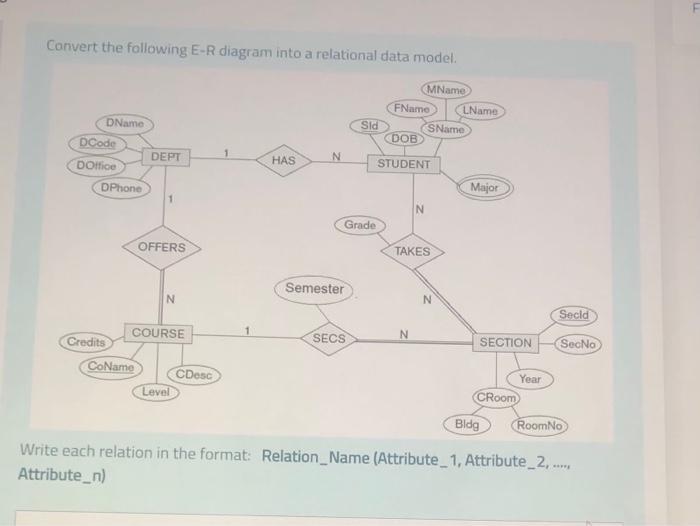

Convert the following E-R diagram into a relational data model. MName FNamo LName SName DOB DName Sid DCode DEPT 1 DOffice HAS N STUDENT DPhone Major 1 N Grade OFFERS TAKES Semester N N Secid COURSE Credits SECS N SECTION SecNo CoName CDosc Level Year CRoom Bldg RoomNo Write each relation in the format: Relation_Name (Attribute_1, Attribute_2 ..... Attribute_n)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related General Management Questions!

QUESTION 1 Which one of the following statements is not part of the "bundle of rights" enjoyed by a fee simple owner of property? a. The right to possess the property b. The right to control what...

Consider the following requirement analysis description and the relevant ER diagram design. The university is organized into colleges (COLLEGE), and each college has a unique name (CName), a main...

COffice Rank 1Office IName IPhone CName CPhone COLLEGE DEAN INSTRUCTOR (1.1) 10.1) (ON) CStartDate 10.11 ION CHAIR (1.1) ADMINS (1.1) (1.1) MName FName (LName EMPLOYS Sid SName DOB Addr DName ON...

1. How can you enhance the given ER diagram by introducing a superclass/subclass relationship for following entities? Draw a modified EER diagram to reflect the necessary changes to the above ER...

How to convert this ER-Diagram to Schema COffice CName CPhone Rank 1Office Id IName IPhone COLLEGE DEAN INSTRUCTOR (1,1) (0,1) (0,N) CStartDate (0,1) (0,0) CHAIR (1,1) ADMINS (1,1) (1,1) DName DCode...

Which combinations of attributes have to be unique for each individual SECTION entity in the UNIVERSITY database shown in Figure 3.20 to enforce each of the following miniworld constraints: a. During...

Map the UNIVERSITY database schema shown in Figure 3.20 into a relational database schema. Figure 3.20 Coffice Rank 1Office CName CPhone ld IName IPhone COLLEGE DEAN INSTRUCTOR (1,1) (0,1) (0,N)...

Use draw.io to create the ER diagrams please. you may use any other ER diagram maker but draw.io is free and probably the easiest to use part 1 Composite and multivalued attributes can be nested to...

The university is organized into colleges (COLLEGE), and each college has a unique name (CName), a main office (COffice) and phone (CPhone), and a particular faculty member who is dean of the...

Draw an ER Diagram for a University database and use the min - max ER diagrammatic notation according to the following: The university is organized into colleges ( COLLEGE ) , and each college has a...

Based on the scenario Identify the most appropriate Unique Identifier ( UID ) for COLLEGE, DEPT and STUDENT. "The university is organized into colleges ( COLLEGE ) , and each college has a unique...
