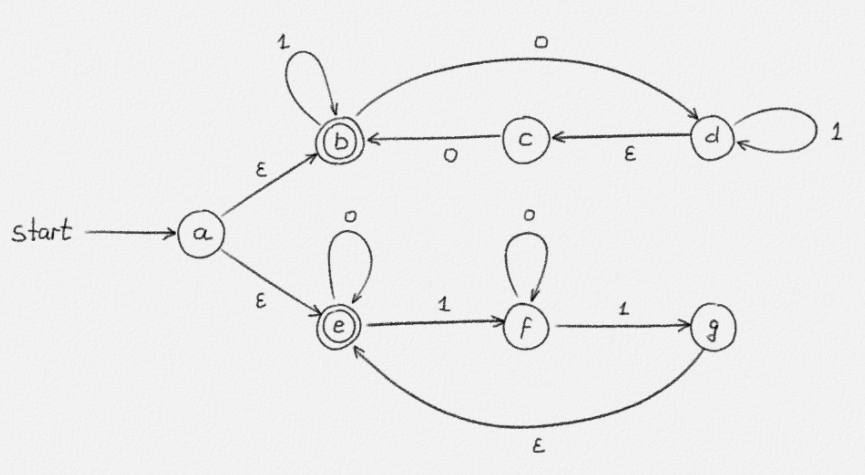

Question: convert the NFA in diagram 1 into a regular expression that matches exactly the strings accepted by this NFA. You should show the RNFA you

convert the NFA in diagram 1 into a regular

convert the NFA in diagram 1 into a regular expression that matches exactly the strings accepted by this NFA. You should show the RNFA you obtain from the given NFA, as well as the individual steps that remove one state at a time until you obtain an RNFA with two states and a single transition whose label is the desired regular expression.

this question is aboud DFA AND NFA AND REGULAR EXPRESSION!!!!!!!

please follow instruction!!!!!!!!!!!!

1 0 (b d 1 E E start a E 1 1 F 9 E 1 0 (b d 1 E E start a E 1 1 F 9 E
