Question: Could you please explain how do we find the truth table of it and how do we solve the question thanks in advance! QUESTION 7:

Could you please explain how do we find the truth table of it and how do we solve the question thanks in advance!

Could you please explain how do we find the truth table of

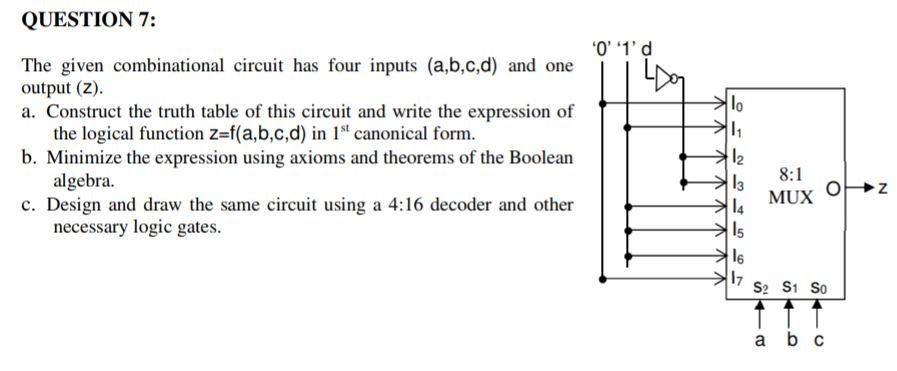

QUESTION 7: The given combinational crcuit has four inputs (a,b,c,d) and one output (Z). a. Construct the truth table of this circuit and write the expression of the logical function z-f(a,b,c,d) in 1st canonical form algebra. necessary logic gates 12 13 8:1 b. Minimize the expression using axioms and theorems of the Boolean c. Design and draw the same circuit using a 4:16 decoder and other 5 6 a b c

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
