Course: Artificial Intelligence

Random Search """""""with Open List""""""""""": (Current node: X, Child Nodes: S, Next selected node: X, Closed List: C, Open List: O)

Step1: Add initial node to open list O. Step2: If open list O is empty, then end with Failure

Take top node as X from the open list O. If X is Target node, then end with Success.

Step3: Take the child nodes of X and store them in S.

Move X to closed List C. Step4: Add the child node X from S to open list O if the child node X is not part of closed list C. Step5: Return to Step 2.

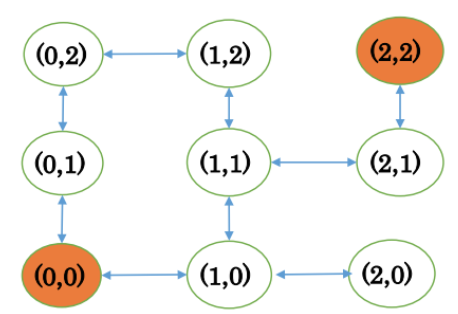

Example 1:

Initial Node = 0,0 Target Node = 2, 2

#	O	X	S	X	C
1	(0,0)
2		0, 0	(0,1), (1,0)
3	(0,1), (1,0)				(0,0)
4	(1,0)	0, 1	(0,0), (0,2)
5	(0,2), (1,0)				(0, 1), (0,0)
6	(1,0)	0,2	(0,1), (1, 2)
7	(1, 2), (1,0)				(0,2), (0, 1), (0,0)
9	(1,0)	1, 2	(1,1), (0,2)
9	(1,1), (1,0)				(1, 2), (0,2), (0, 1), (0,0)
10	(1,0)	1,1	(1, 2), (2,1), (1,0)
11	(2,1), (1,0)				(1,1), (1, 2), (0,2), (0, 1), (0,0)
12	(1,0)	2,1	(1, 1) (2, 2)
13	(2, 2), (1,0)				(2,1), (1,1), (1, 2), (0,2), (0, 1), (0,0)
14		2, 2

"""""""""!!!!!!!!!! Note:Please Solve Question 1 like Example 1 !!!!!!!!"""""""""""

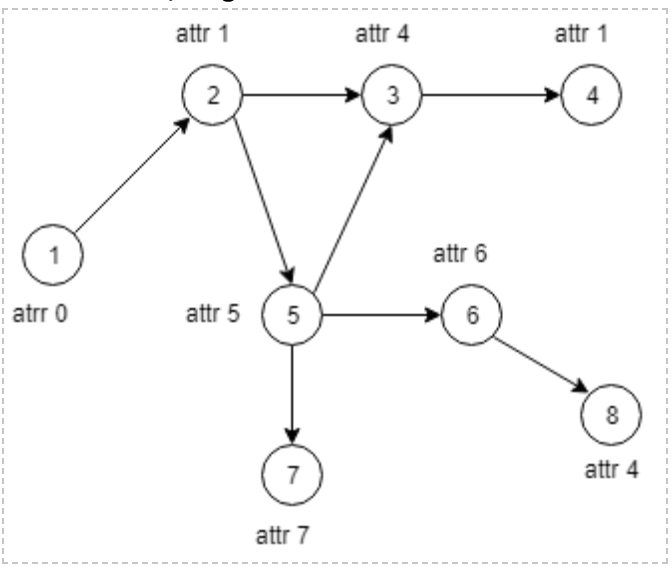

Question 1:

Initial Node: 1, Target Node: 8

(0,2) (1,2) (2,2) (0,1) (1,1) (2,1) (0,0) (1,0) (2,0) 1 attr 1 attr 4 attr 1 2 attr 6 atrr 0 attr 5 5 6 8 7 attr 4 attr 7 (0,2) (1,2) (2,2) (0,1) (1,1) (2,1) (0,0) (1,0) (2,0) 1 attr 1 attr 4 attr 1 2 attr 6 atrr 0 attr 5 5 6 8 7 attr 4 attr 7
