Question: Create a C++ program to simulate the circuit with the given parameters. The program should: Use the Modified Nodal Analysis matrix stamping method Apply device

 Create a C++ program to simulate the circuit with the given

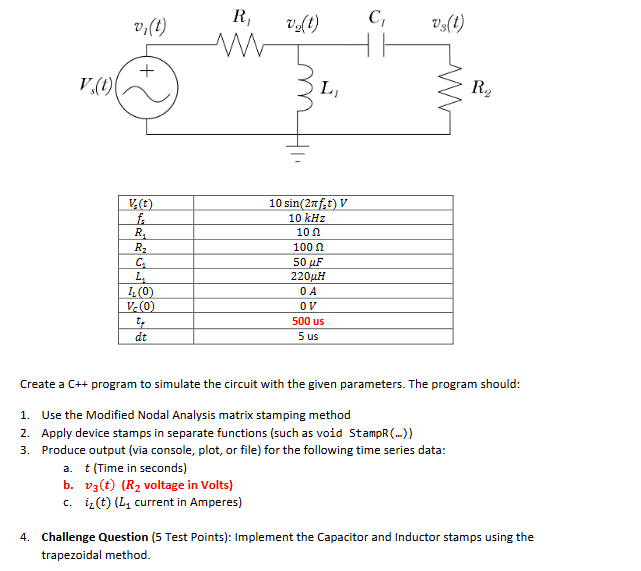

Create a C++ program to simulate the circuit with the given parameters. The program should: Use the Modified Nodal Analysis matrix stamping method Apply device stamps in separate functions (such as void StampR(...)) Produce output (via console, plot, or file) for the following time series data t (Time in seconds) v _3 (t) (R _2 voltage in volts) I _L(t) (L1 current in Amperes) implement the Capacitor and Inductor stamps using the trapezoidal method. Create a C++ program to simulate the circuit with the given parameters. The program should: Use the Modified Nodal Analysis matrix stamping method Apply device stamps in separate functions (such as void StampR(...)) Produce output (via console, plot, or file) for the following time series data t (Time in seconds) v _3 (t) (R _2 voltage in volts) I _L(t) (L1 current in Amperes) implement the Capacitor and Inductor stamps using the trapezoidal method

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
