Question: CREATE AN ACTIVITY ON ARC (AOA) FOR THIS PROJECT NETWORK: PLEASE CREATE/DRAW ONE JUST LIKE THE EXAMPLE SHOWN BELOW. Heres an example to help solve
CREATE AN ACTIVITY ON ARC (AOA) FOR THIS PROJECT NETWORK:

PLEASE CREATE/DRAW ONE JUST LIKE THE EXAMPLE SHOWN BELOW.

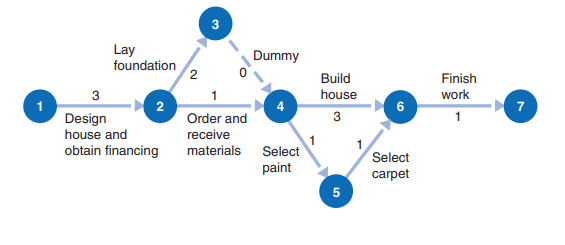

Heres an example to help solve the Activity on Arc (AOA) problem above: The same type of chart and an example of how it is solved with an AOA network below it.
| number | activity | predecessor | duration (months) |
| 1 | design | -- | 3 |
| 2 | lay foundation | 1 | 2 |
| 3 | order and receive materials | 1 | 1 |
| 4 | build house | 2,3 | 3 |
| 5 | select paint | 2,3 | 1 |
| 6 | select carpet | 5 | 1 |
| 7 | finish work | 4,6 | 1 |

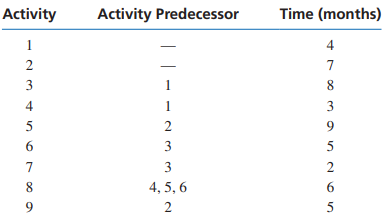

\begin{tabular}{ccc} Activity & Activity Predecessor & Time (months) \\ \hline 1 & - & 4 \\ 2 & - & 7 \\ 3 & 1 & 8 \\ 4 & 1 & 3 \\ 5 & 2 & 9 \\ 6 & 3 & 5 \\ 7 & 3 & 2 \\ 8 & 4,5,6 & 6 \\ 9 & 2 & 5 \end{tabular} 3
