Creating a VI for washing machine interface. First, an on$/$off button should be used to turn on the washing machine. The user selectes the wasing mode from intensive, color or quick and washing should start when the start cycle button is pressed. The cycle runs for a set time during which it displays the cycle stage name and the time remaining and then moves onto the next stage when timer reaches zero. The stages are pre$-$rinse, main wash, spin and wash done.

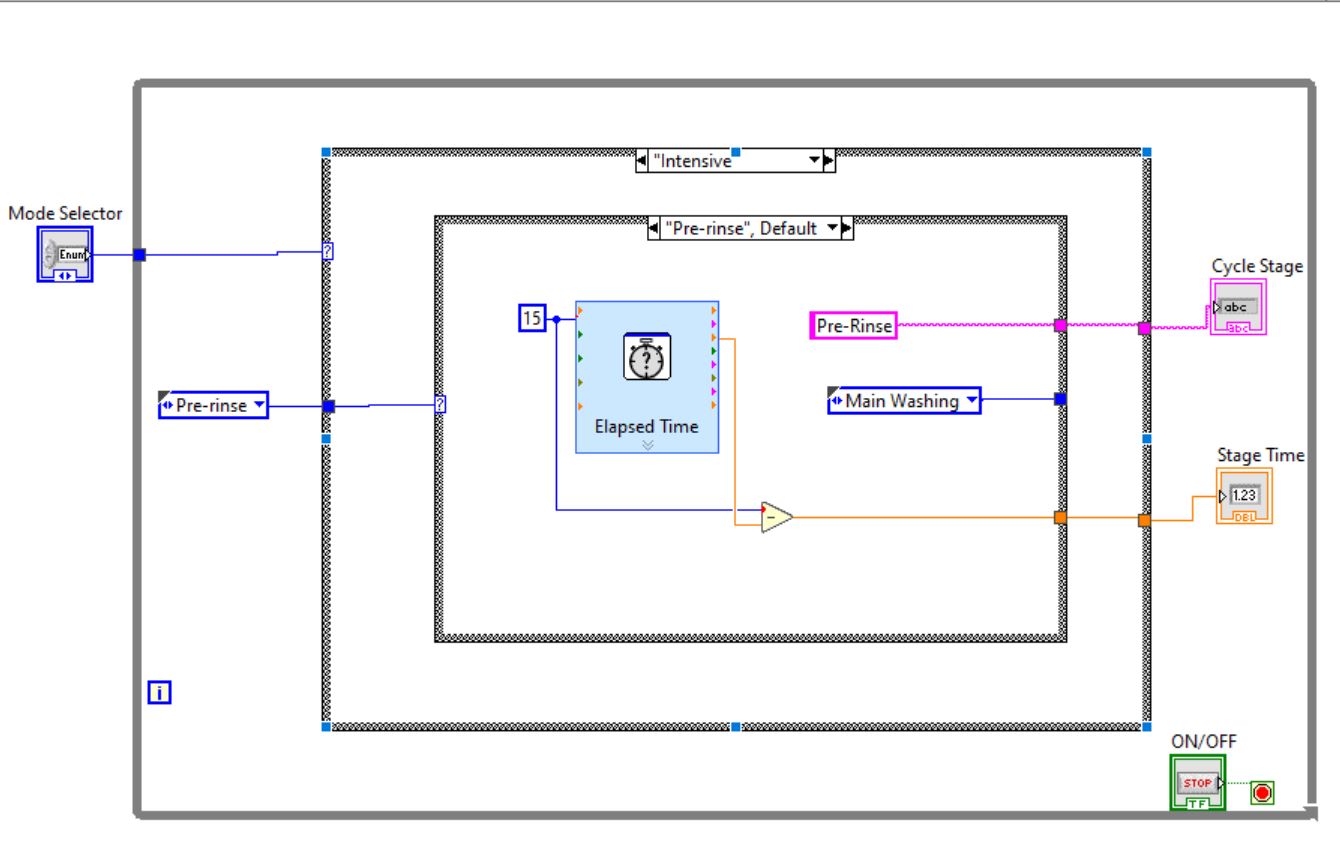

I have attched my progress so far. Currently the case is not changed when the timer drops to zero. The timer keeps looping back. I am also having trouble with the buttons, both on$/$off and start cycle.

Please not that I$\text{'}$m not writing code, only block diagram and front panel.
