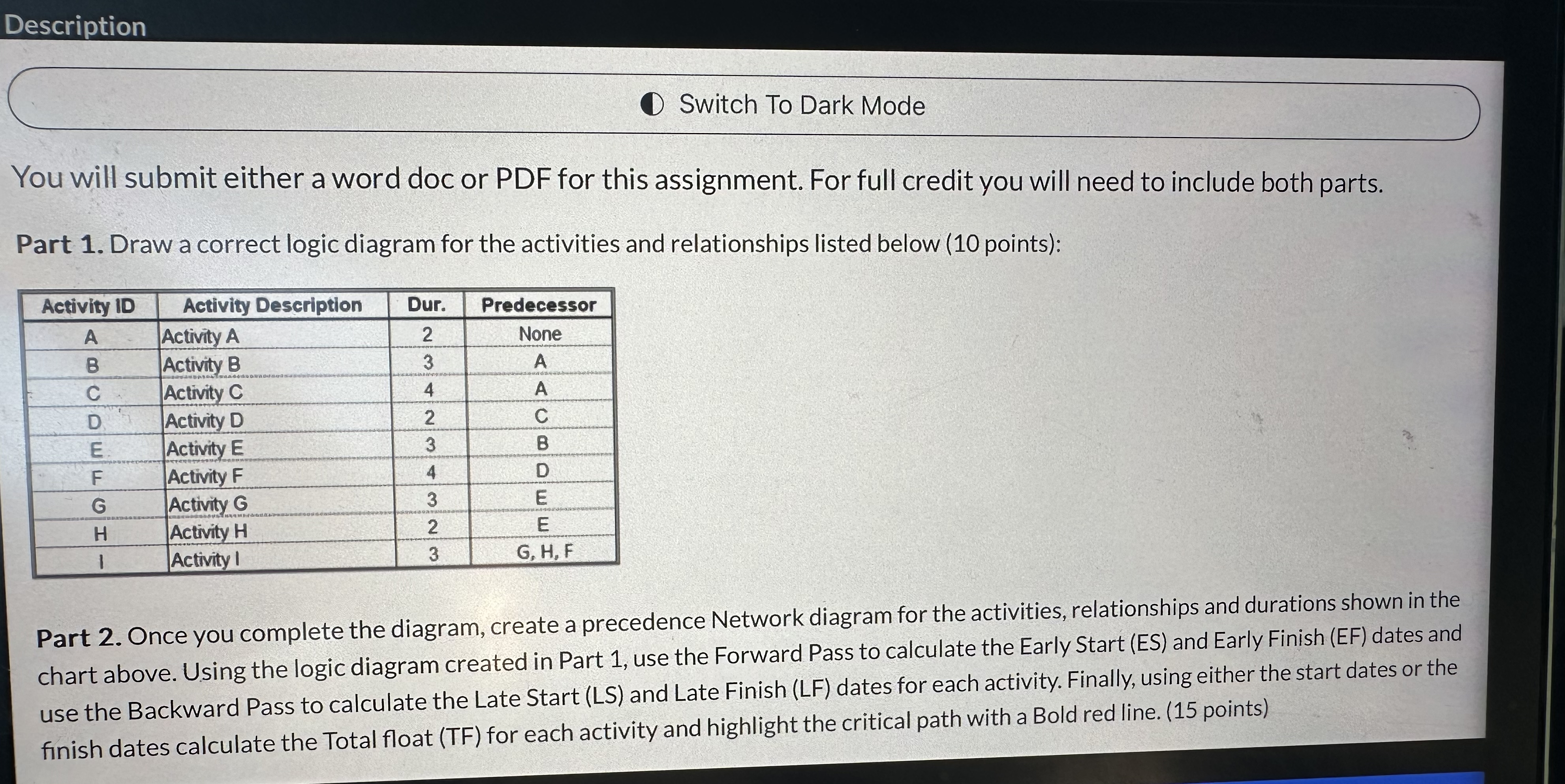

You will submit either a word doc or PDF for this assignment. For full credit you will need to include both parts.

Part $1.$ Draw a correct logic diagram for the activities and relationships listed below $(10$ points$)$:

$\backslash$table$[[$Activity ID$,$Activity Description,Dur.,Predecessor$],[$A$,$Activity A$,2,$None$],[$B$,$Activity B$,3,$A$],[$C$,$Activity C$,4,$A$],[$D$,$Activity D$,2,$C$],[$E$,$Activity E$,3,$B$],[$F$,$Activity F$,4,$D$],[$G$,$Activity G$,3,$E$],[$H$,$Activity H$,2,$E$],[$I$,$Activity I,$3,$G$,$ H$,$ F$]]$

Part $2.$ Once you complete the diagram, create a precedence Network diagram for the activities, relationships and durations shown in the chart above. Using the logic diagram created in Part $1,$ use the Forward Pass to calculate the Early Start $($ES$)$ and Early Finish $($EF$)$ dates and use the Backward Pass to calculate the Late Start $($LS$)$ and Late Finish $($LF$)$ dates for each activity. Finally, using either the start dates or the finish dates calculate the Total float $($TF$)$ for each activity and highlight the critical path with a Bold red line. $(15$ points$)$
