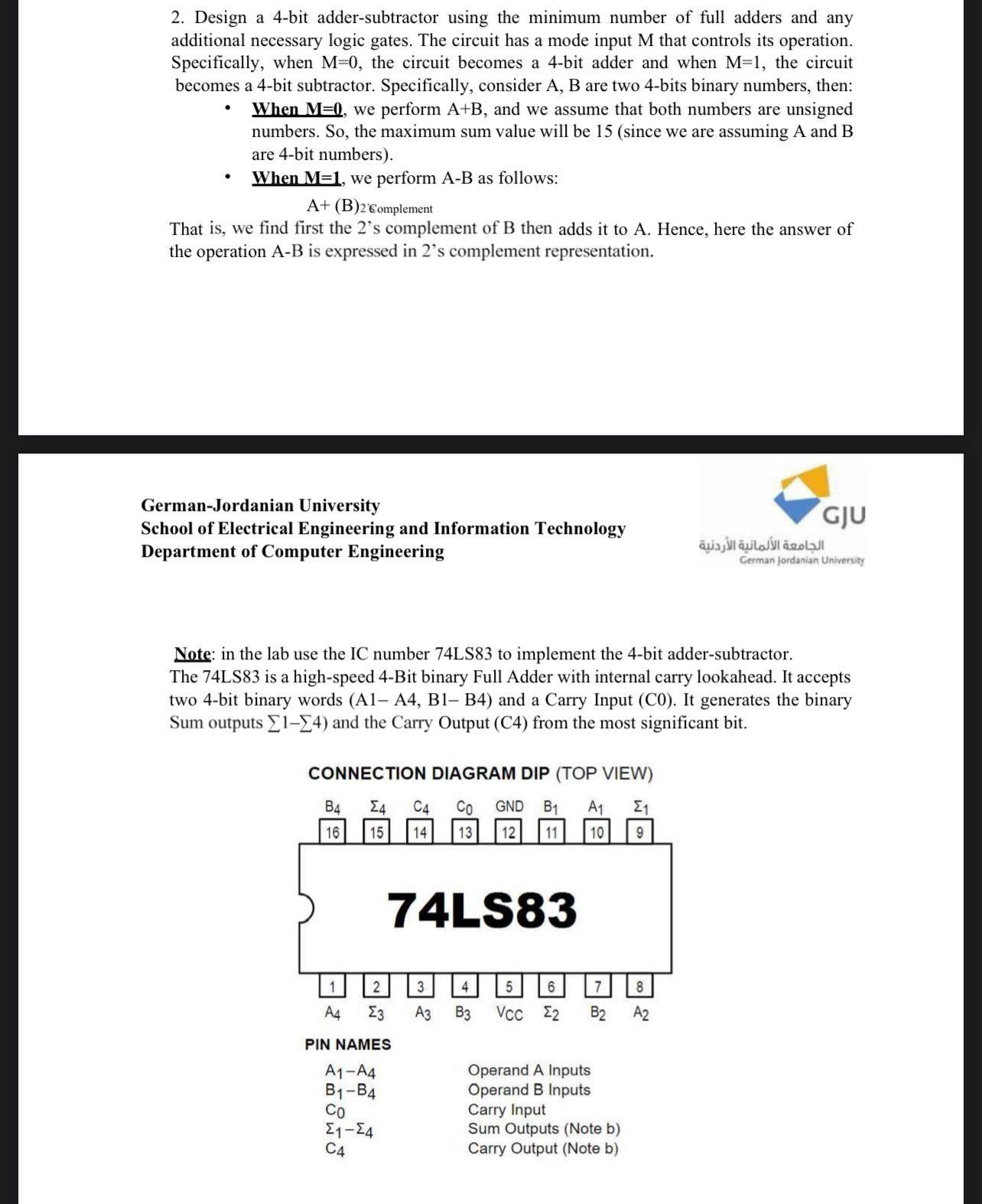

Design a 4-bit adder-subtractor using the minimum number of full adders and any additional necessary logic gates. The circuit has a mode input M that controls its operation. Specifically, when M=0, the circuit becomes a 4-bit adder and when M=1, the circuit becomes a 4-bit subtractor. Specifically, consider A, B are two 4-bits binary numbers, then:
When M=0, we perform A+B, and we assume that both numbers are unsigned numbers. So, the maximum sum value will be 15(since we are assuming A and B are 4-bit numbers).
When M=1, we perform A-B as follows:
A+(B)2 'Eomplement
That is, we find first the 2's complement of B then adds it to A. Hence, here the answer of the operation A-B is expressed in 2's complement representation.
German-Jordanian University
School of Electrical Engineering and Information Technology Department of Computer Engineering
German Jordanian University
Note: in the lab use the IC number 74LS83 to implement the 4-bit adder-subtractor. The 74LS83 is a high-speed 4-Bit binary Full Adder with internal carry lookahead. It accepts two 4-bit binary words (A1- A4, B1- B4) and a Carry Input (C0). It generates the binary Sum outputs ??1-??4) and the Carry Output (C4) from the most significant bit.
