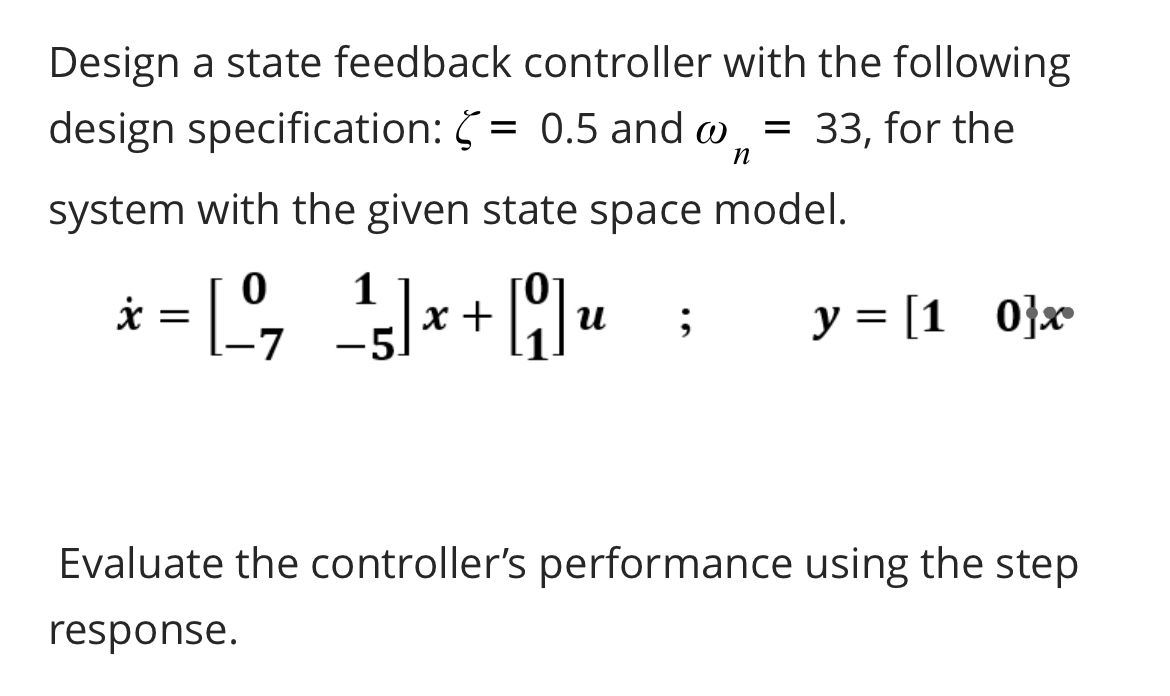

Question: Design a state feedback controller with the following design specification: = 0 . 5 and n = 3 3 , for the system with the

Design a state feedback controller with the following design specification: =0.5 and n=33, for the system with the given state space model.
x=[01-7-5]x+[01]u,;,y=[10]x
Evaluate the controller's performance using the step response.
Design a state feedback controller with the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

USING MATLAB Design a state feedback controller with the following design specification: = 0 . 5 and n = 3 3 , for the system with the given state space model. x = [ 0 1 - 7 - 5 ] x + [ 0 1 ] u , ; ,...
