Question: Design an 8 to 1 line multiplexer using two 4 to 1 line multiplexer and one 2 to 1 line multiplexer as shown in the

Design an 8 to 1 line multiplexer using two 4 to 1 line multiplexer and one 2 to 1 line multiplexer as shown in the figure below. Be sure to label the inputs I_0 ~ I_7, selecting line S_0 ~ S_2, and output Y,A . Also please connect the three multiplexer appropriately so that the entire circuit becomes an 8 to 1 line multiplexer. Note that you are not allowed to use any other gates.

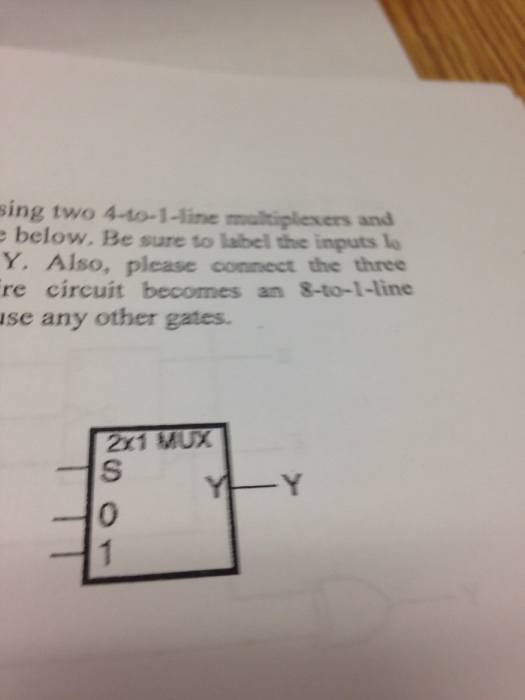

sing two 4-to-1-line multiplexers and e below. Be sure to label the inputslo Y. Also, please connect the three re circuit becomes an 8-to-1-line use any other gates. 2x1 MUX

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

To implement an 8-to - 1 line multiplexer using two 4 - to - 1 line multiplexer (MUX): a. The third selctor is connected to the enable line of the first and second MUX. O b. The third selctor is...
