Question: design the datapath for this block of code something like this void main( int x, y, z; x=0; y=0; scanf(input z: %d, &z); while (z+0){

design the datapath for this block of code

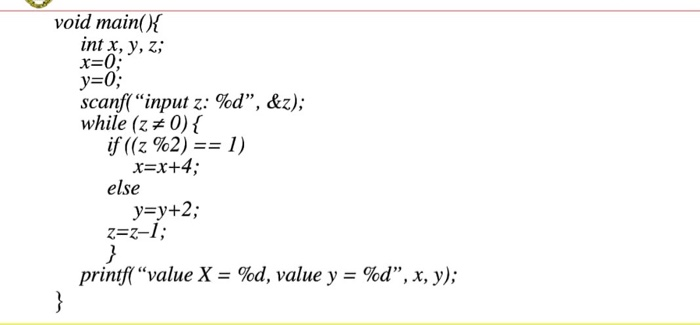

something like this void main( int x, y, z; x=0; y=0; scanf("input z: %d", &z);

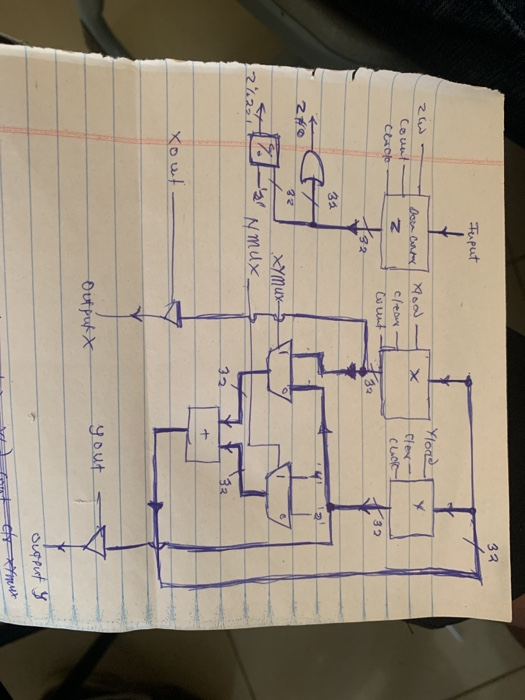

void main( int x, y, z; x=0; y=0; scanf("input z: %d", &z); while (z+0){ if ((z%2) == 1) x=x+4; else y=y+2; z=z-1; printf("value X = %d, value y = %d", x, y); Input Yload 1 2 Don Car Moal Count- Cacle Z clou- went ! Clex cuck! J XYMUX -2 Nmux- u. } Output X yout sigauty th your

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

draw using the simplest data path and logic and explain. void main( int x, y, z; x=0; y=0; scanf("input z: %d", &z); while (z+0){ if ((z%2) == 1) x=x+4; else y=y+2; z=z-1; printf("value X = %d, value...

simplify your digital datapath diagram using logic gates. void main( int x, y, z; x=0; y=0; scanf("input z: %d", &z); while (z+0){ if ((z%2) == 1) x=x+4; else y=y+2; z=z-1; printf("value X = %d,...

I am trying to create a datapath using purely combinational logic. Trying to implement this C program. I was thinking of creating three registers , namely X, Y and Z. I initialize x and y to...
