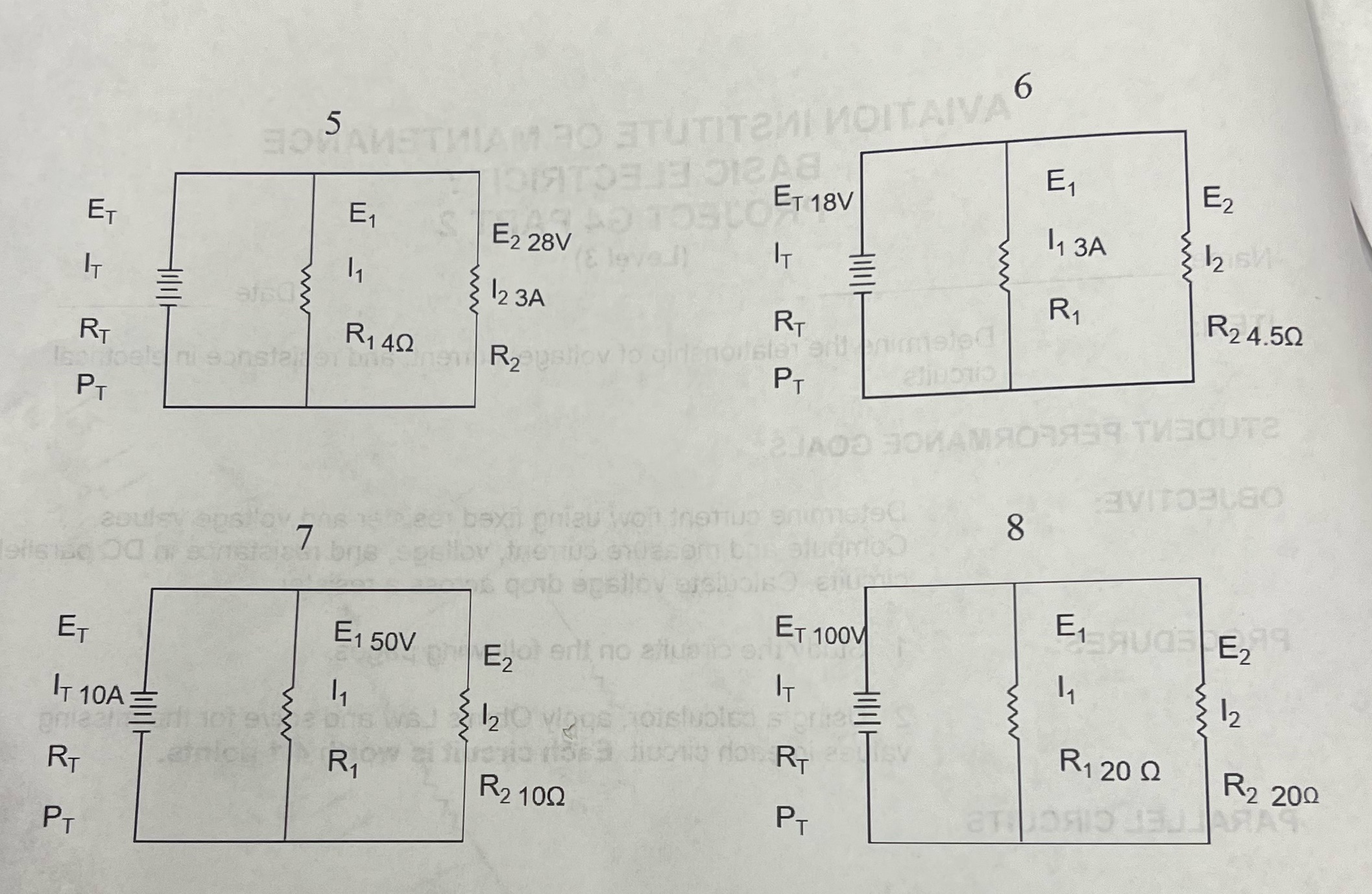

Question: Determine current flow using fixed resister and voltage values.Compute and measure current, voltage, and resistance in DC parallelcircuits. Calculate voltage drop across a resister. Using

Determine current flow using fixed resister and voltage values.Compute and measure current, voltage, and resistance in DC parallelcircuits. Calculate voltage drop across a resister. Using a calculator, apply Ohm's Law and solve for the missingvalues in each circuit.

6 AMETHIAM TO STUTITeNI NOITAIVA 5 E1 E2 ET 18V NO TOSCO 113A 12 5/1 E1 ET E2 28V & level) IT MM R1 11 R24.50 IT M 12 3A RT RT R140 Roopslov to girdenoilslar PT Ben sonstart 2 JAOS JONAMROR239 THBOUTe PT aVITOBLEO 8 7 ET 10OV E10 E2 19 ET E1 50V E,lerli, no aftupto od IT 12 E 1 1 IT 10A R120 0 R2 200 Ry RT R2 100 PT PT

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
