Question: Determine deflection values at every 1 ft ordinates. Problem 1 : Conjugate Beam Method ( a ) Using Conjugate Beam Method evaluate the equation for

Determine deflection values at every 1ft ordinates. Problem 1: Conjugate Beam Method

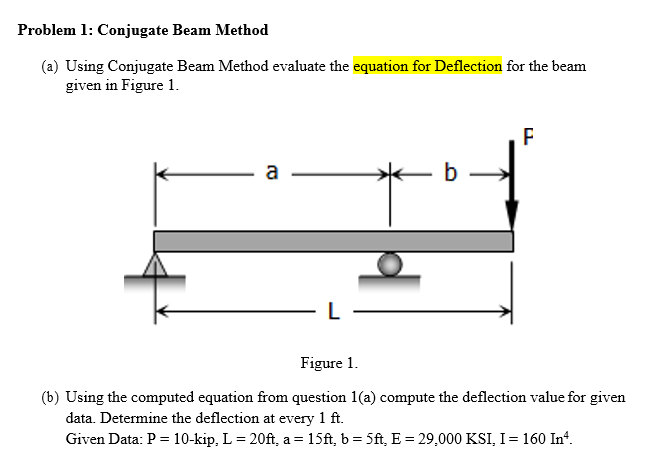

(a) Using Conjugate Beam Method evaluate the equation for Deflection for the beam given in Figure 1.
Figure 1.
(b) Using the computed equation from question 1(a) compute the deflection value for given data. Determine the deflection at every 1ft.
Given Data: P=10-kip, L=20ft,a=15ft,b=5ft,E=29,000KSI,I=160In4.
Determine deflection values at every 1 ft

Step by Step Solution

There are 3 Steps involved in it
