Question: Determine the design angle ( 0 9 0 ) for strut A B so that the 4 0 0 - l b horizontal force has

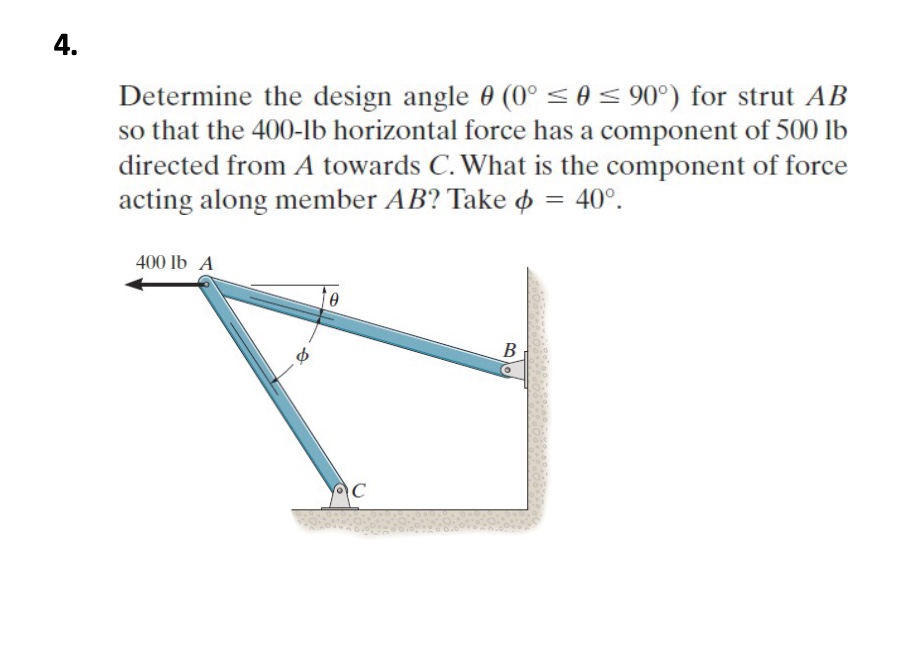

Determine the design angle (090) for strut AB so that the 400-lb horizontal force has a component of 500 lb directed from A towards C. What is the component of force acting along member AB? Take =40.
Determine the design angle ( 0 9 0 ) for strut A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
