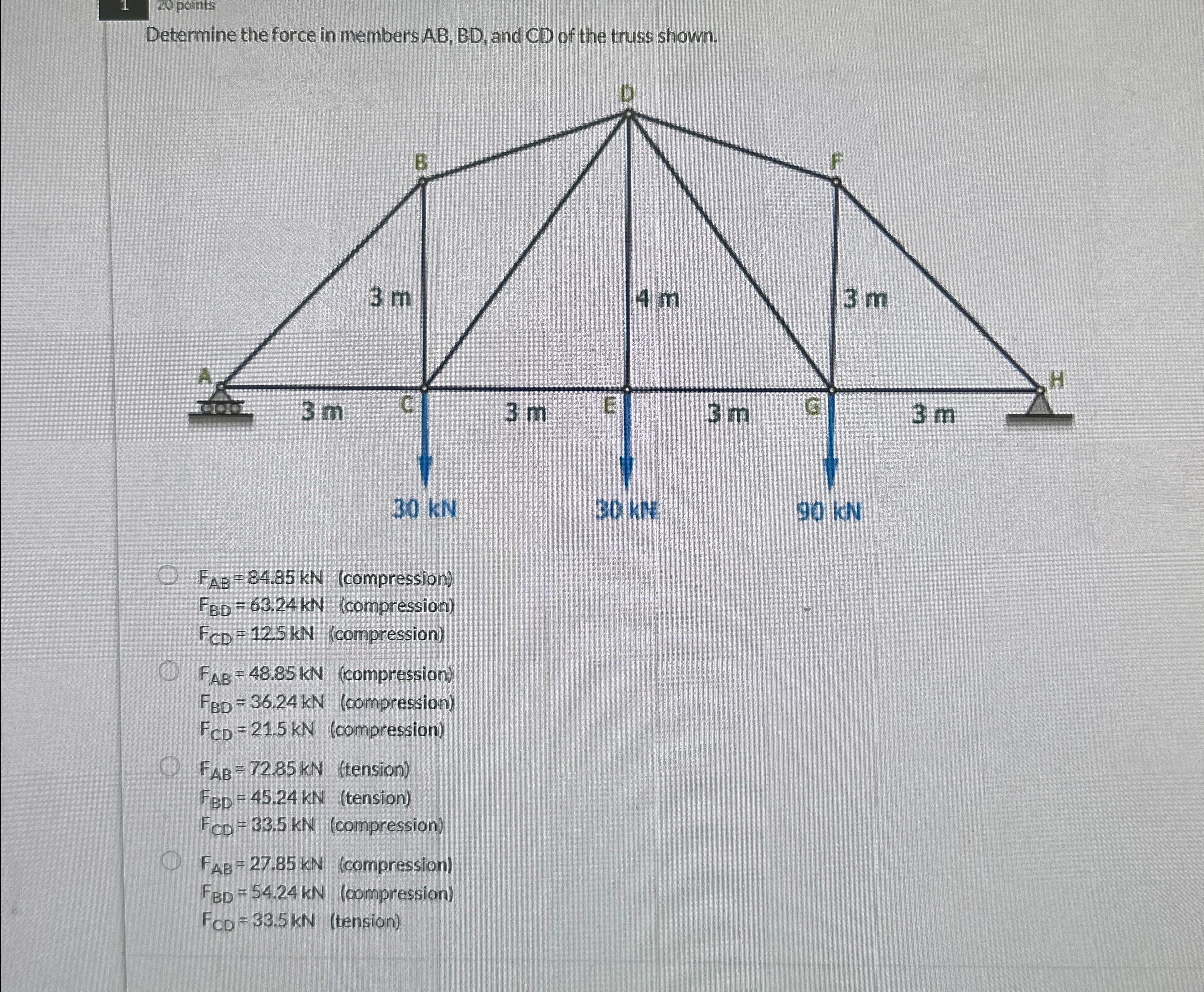

Question: Determine the force in members A B , B D , and C D of the truss shown.

Determine the force in members AB,BD, and CD of the truss shown.
Determine the force in members A B , B D , and C

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Determine the force in members \ ( G F , G D \ ) , and \ ( C D \ ) of the truss ( Figure 1 ) . State if the members are in tension or compression. Take that \ ( P _ { 1 } = 8 \ mathrm { kN } , P _ {...

Q:

Determine the force in members \ ( G F , G D \ ) , and \ ( C D \ ) of the truss. State if the members are in tension or compression. Take that \ ( P _ { 1 } = 1 0 \ mathrm { kN } , P _ { 2 } = 2 7 \...

Q:

Problem 0 6 . 0 4 9 - The forces in members Determine the force in members \ ( C D \ ) and \ ( D F \ ) of the truss shown when \ ( P = 1 5 \ mathrm { kN } \ ) . The force in \ ( C D \ ) is The force...

Q:

P . 3 . ( 3 0 points ) Use the method of sections to determine the force in members \ ( B C , B D \ ) , and \ ( E D \ ) of the truss and state if these members are in tension or compression.

Q:

Problem 0 3 3 - 2 1 . Determine the force in members \ ( F G , G D , C D \ ) and \ ( G A \ ) of the truss. State if the members are in tension or compression. - Use Method of Sections
