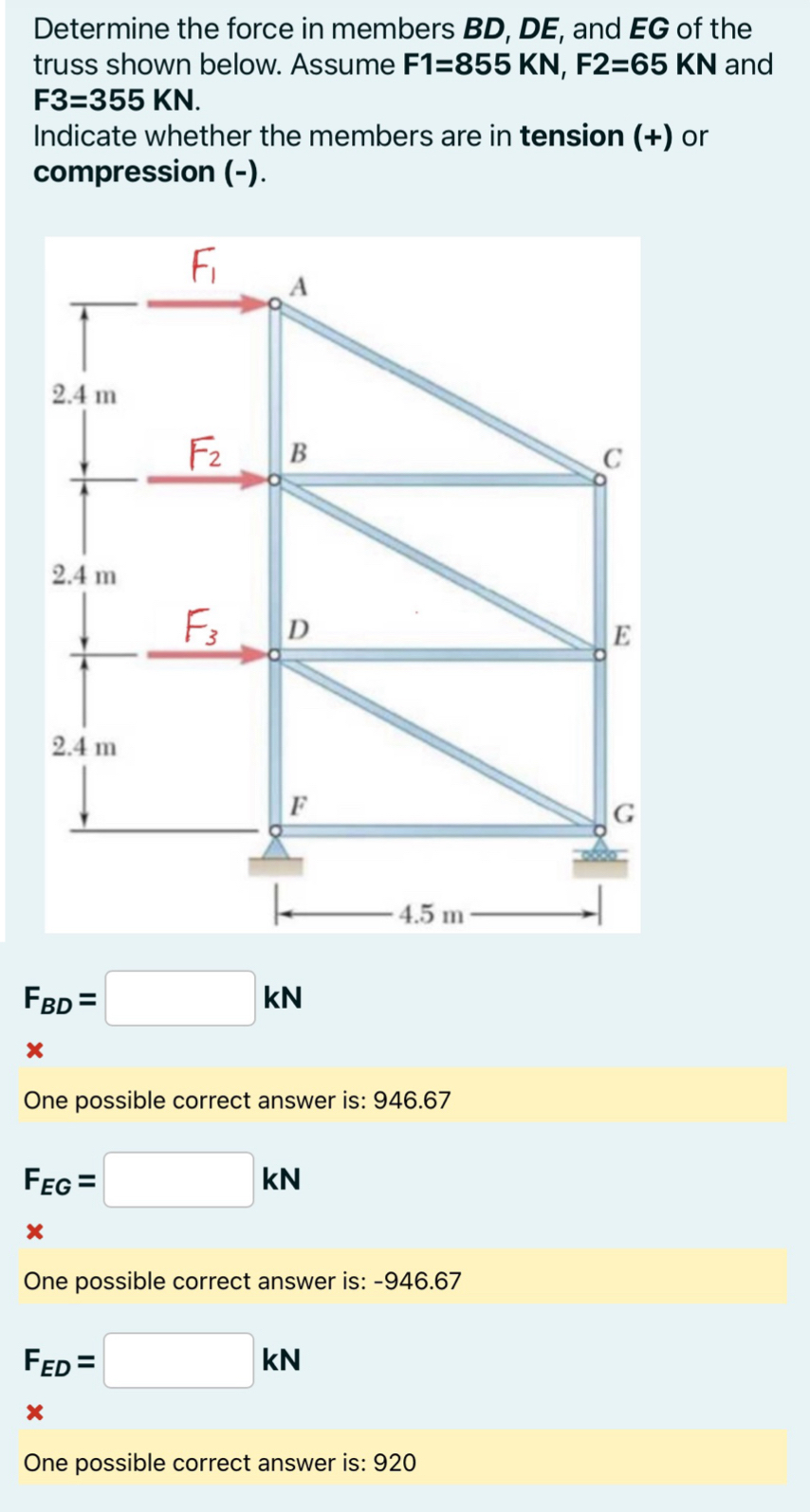

Question: Determine the force in members B D , D E , and E G of the truss shown below. Assume F 1 = 8 5

Determine the force in members BD,DE, and EG of the truss shown below. Assume F1=855 KN, F2=65 KN and F3=355KN.
Indicate whether the members are in tension (+) or compression (-).
FBD= kN
x
One possible correct answer is: 946.67
FEG= kN x
One possible correct answer is: -946.67
FED= kN
x
One possible correct answer is: 920
