Question: Determine the force in members E A and E B . Joint E Fy: - 8 3 3 ( 3 5 ) - 8 0

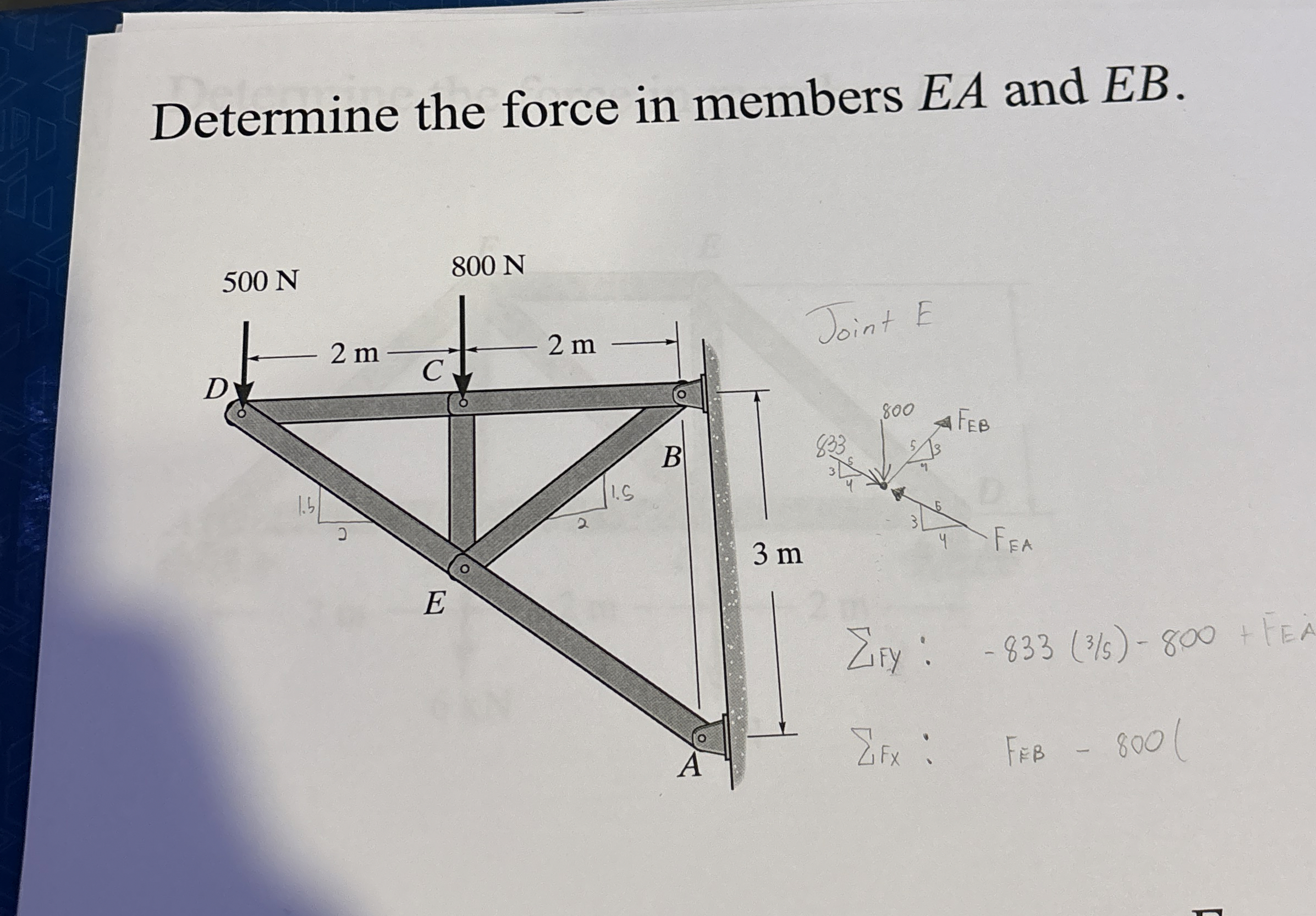

Determine the force in members EA and EB.
Joint E
Fy:
-833(35)-800
fx?:
FFB-8001
Determine the force in members E A and E B .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
