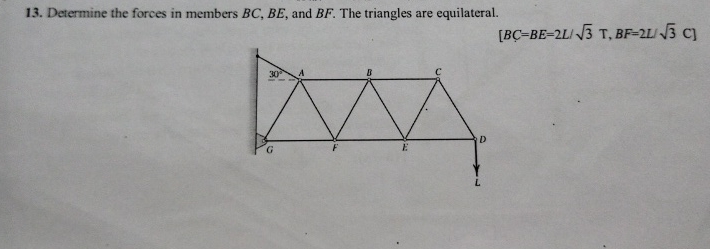

Question: Determine the forces in members B C , B E , and B F . The triangles are equilateral. B C = B E =

Determine the forces in members BC,BE, and BF. The triangles are equilateral.
BC=BE=2L32T,BF=2L32C
Determine the forces in members B C , B E , and B

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
