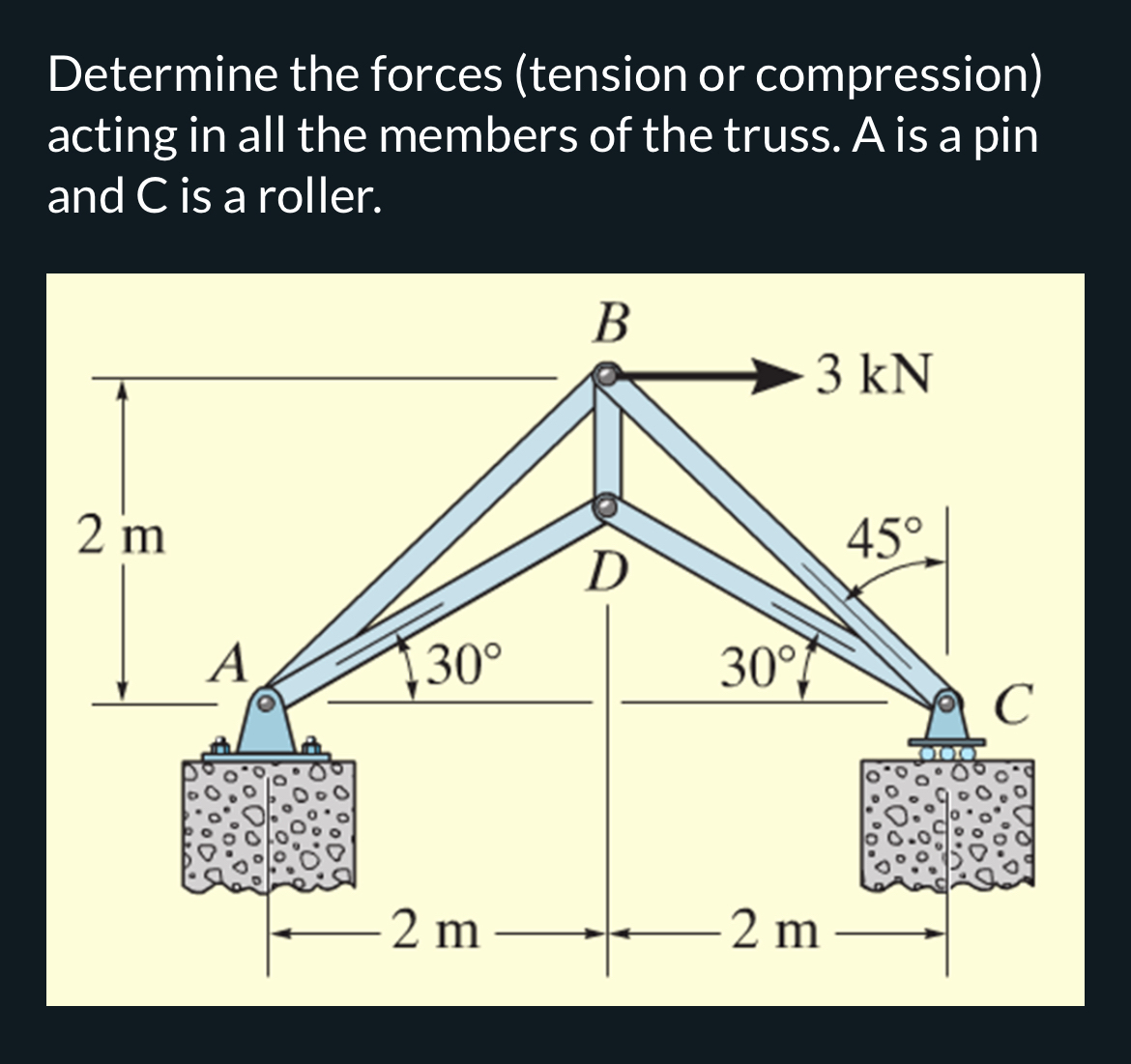

Question: Determine the forces ( tension or compression ) acting in all the members of the truss. A is a pin and C is a roller.

Determine the forces (tension or compression) acting in all the members of the truss. A is a pin and C is a roller.
Determine the forces ( tension or compression )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

For the truss shown below, determine the reactions at E and D . Use the method of Joints to determine the member forces. Indicate if the members are in tension or compression. Identify any ZERO FORCE...

Q:

Q 1 ) Determine the approximate values of force in the two diagonal members of the truss in Figure 1 . Assume that the diagonals cannot carry compression force. ( 2 0 p t : LO 1 ) Q 2 ) Determine the...

Q:

PROBLEM SOLVING A ( 1 0 % of Final Course Grade ) Analyze the truss system shown in the figure following the method of SECTIONS. Determine the force in members JE and GF of the truss and state if...

Q:

Given a = 1.9 m, b = 0.9 m, c = 2.3 m, F = 28 N, and F2 = 14 N, K G F E a 8 A B C b F1 C F2 b determine the forces in each member and state if the members are in tension or compression. Give positive...

Q:

Question #1 Determine the force in each member of the truss. Indicate if the member is in tension or compression. I is a rocker support, M is a pin support. 4 m 360 N J N 240 N 120 N K 4 spaces of 3...

Q:

You must modify this code so that it works for any truss that the user wishes to analyze, whether 2-D or 3-D. Therefore, after your code is modified, all trusses should be assumed as 3-D Space...

Q:

Consider the truss shown in (Figure 1). Suppose that F = 9 KN . Part A Deturmine the magnitude of the vertical component of the reaction force at pin A. AEd vec ? Ay KN Submit Request Answer Part B...

Q:

The truss below is subject to the loads as shown. All of the members are attached at plates and can be treated as pin connected. The truss is attached to the ground with a pin joint at A and a roller...

Q:

(a) The truss structure shown in Figure 3 is loaded at K, and supported by pin at A and roller at B Determine the reactions in A and in B and draw these in a free body diagram 15 Marks [COI, PO2, CSI...

Q:

CoURGENT PLEASE Cnsider the truss shown. The truss is supported by a pin at A which has a support force with a y - component of 4 1 . 5 k N upwards and an x - component of 0 k N , and a roller at H...
