Question: Work problem 5 . 5 - 9 from the textbook, which is as follows. Sketch the shear diagram and the moment diagram for the beam

Work problem 5.5-9 from the textbook, which is as follows.
Sketch the shear diagram and the moment diagram for the beam AC in Problem 5.2-8.

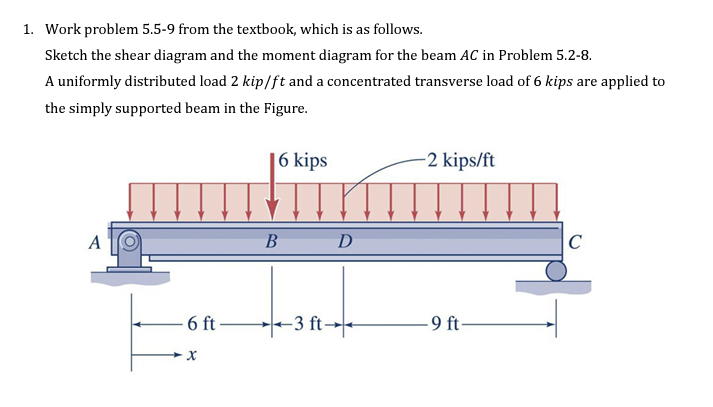

A uniformly distributed load 2kip//ft and a concentrated transverse load of 6 kips are applied to the simply supported beam in the Figure.
Work problem 5 . 5 - 9 from the textbook, which

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
