Question: Determine the internal normal force in the beam at point C . Determine the internal shear force in the beam at point C . Determine

Determine the internal normal force in the beam at point C.
Determine the internal shear force in the beam at point C.
Determine the internal moment in the beam at points C.
Determine the internal normal force in the beam at point D.
Determine the internal shear force in the beam at point D.
Determine the internal moment in the beam at point D.
Determine the internal normal force in the beam

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

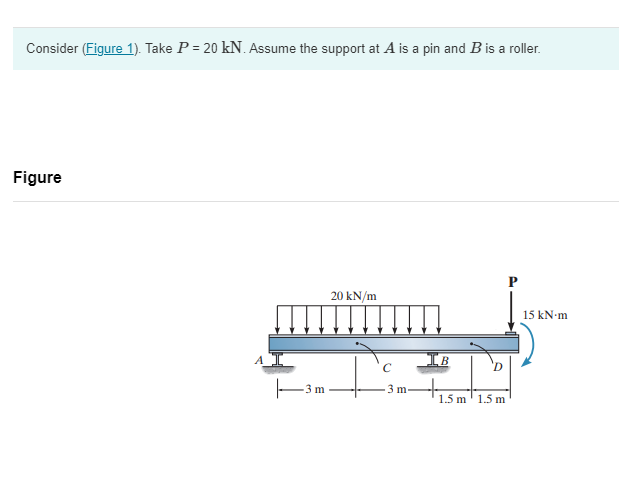

Consider ( Figure 1 ) . Take P = 4 0 k N . Assume the support at A is a pin and B is a roller. Figure Part A Determine the internal normal force in the beam at point C . Express your answer to three...

Q:

Consider the beam shown in ( Figure 1 ) . Take P = 9 . 2 k N and w = 7 . 2 k N m . The support at A is a roller and B is pinned. Part A Determine the internal normal force in the beam at point C ....

Q:

Consider ( Figure 1 ) . Take PP = 1 5 kNkN . Assume the support at AA is a pin and BB is a roller. Part A Consider ( Figure 1 ) . Take \ ( P = 1 5 \ mathrm { kN } \ ) . Assume the support at \ ( A \...

Q:

Determine the internal normal force in the beam at point C . Express your answer to three significant figures and include the appropriate units. Consider the beam shown in ( Figure 1 ) . Assume the...

Q:

Problem 4 . 1 Consider ( Figure 1 ) . Take P = 1 0 k N . Assume the support at A is a pin and B is a roller. Figure 1 of 1 Determine the internal normal force in the beam at point D . Express your...

Q:

Consider the beam shown in ( Figure 1 ) . Take P = 4 . 4 k N and w = 2 . 4 k N m . The support at A is a roller and B is pinned. Determine the internal normal force in the beam at point C . Express...

Q:

Consider ( Figure 1 ) . Take ltexttip . Assume the support at A is a pin and B is a roller. Determine the internal normal force in the beam at point C . Express your answer to three significant...

Q:

Multiple parts to this problem. ( A , B , C , D , E , F ) Please answer all! M = 5 . 4 k * f t , P = 4 . 5 k , w = 1 . 4 k f t , and point D is located just to the left of load P . Follow the sign...

Q:

Assignment: Internal Forces and Diagrams For the AB Beam shown in the figure below, determine the internal shear force and bending moment at point C and point D ( point D is just to the right of the...

Q:

For the AB Beam shown in the figure below, determine the internal shear force and bending moment at point C and point D ( point D is just to the right of the 2 5 kN loading ) , and plot the shear...

Q:
