Question: Consider the beam shown in ( Figure 1 ) . Take P = 9 . 2 k N and w = 7 . 2 k

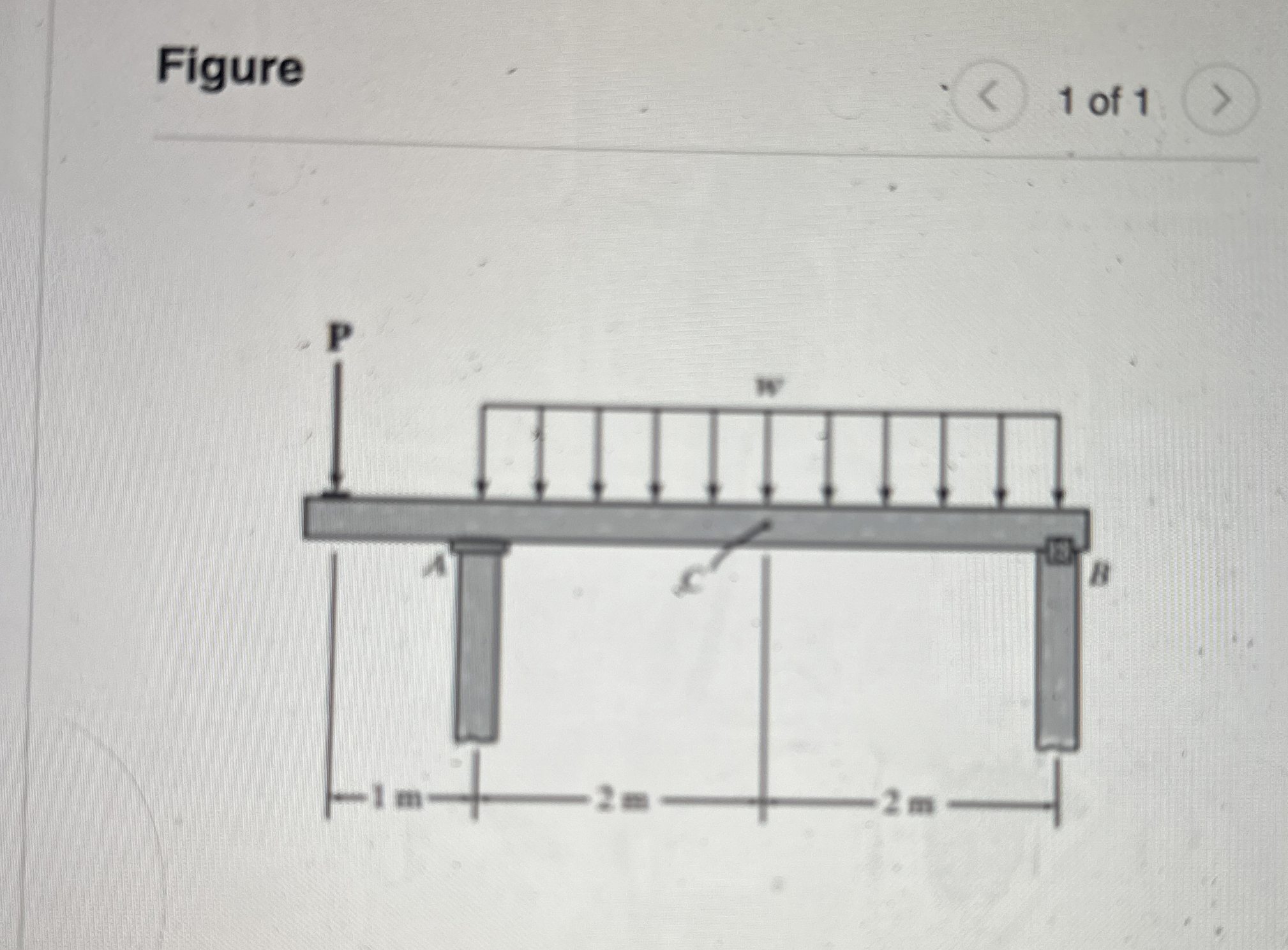

Consider the beam shown in (Figure 1). Take P=9.2kN
and w=7.2kNm. The support at A is a roller and B is
pinned.
Part A
Determine the internal normal force in the beam at point C.
Express your answer to three significant figures and include the appropriate units.
Previous Answers
Correct
Part B
Determine the internal shear force in the beam at point C.
Express your answer to three significant figures and include the appropriate units.
VC=
Value
Figure
Consider the beam shown in ( Figure 1 ) . Take P

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
