Question: Determine the maximum deflection between the supports A and B . E = 2 9 ( 1 0 3 ) k s i , I

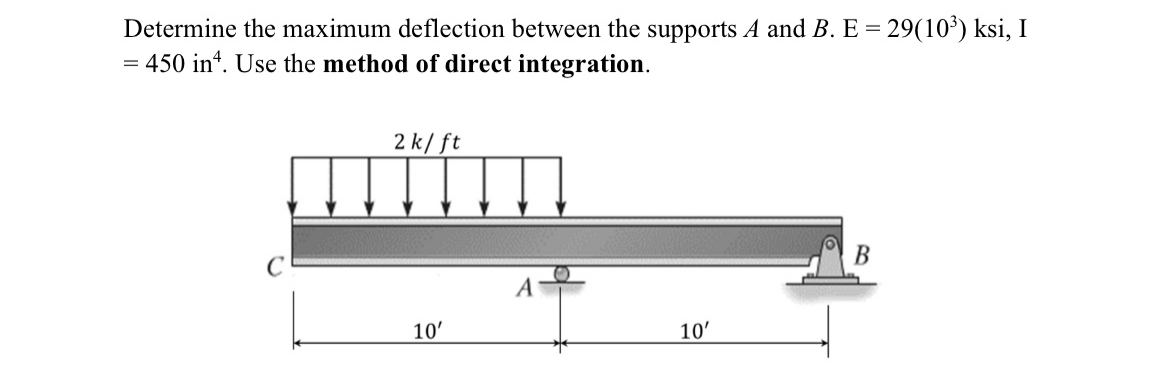

Determine the maximum deflection between the supports A and B.E=29(103)ksi,I =450in4. Use the method of direct integration.
Determine the maximum deflection between the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
