Question: Determine the maximum force P that can be applied to the handle so that the steel rod A B does not buckle. The rod has

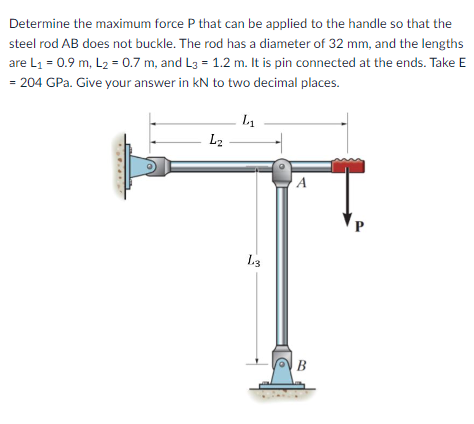

Determine the maximum force P that can be applied to the handle so that the
steel rod AB does not buckle. The rod has a diameter of 32 mm , and the lengths
are L1=0.9m,L2=0.7m, and L3=1.2m. It is pin connected at the ends. Take E
=204GPa. Give your answer in kN to two decimal places.
Determine the maximum force P that can be applied

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
