Question: Determine the maximum load P the frame can support without buckling the steel member A B . Assume that A B is pinned at its

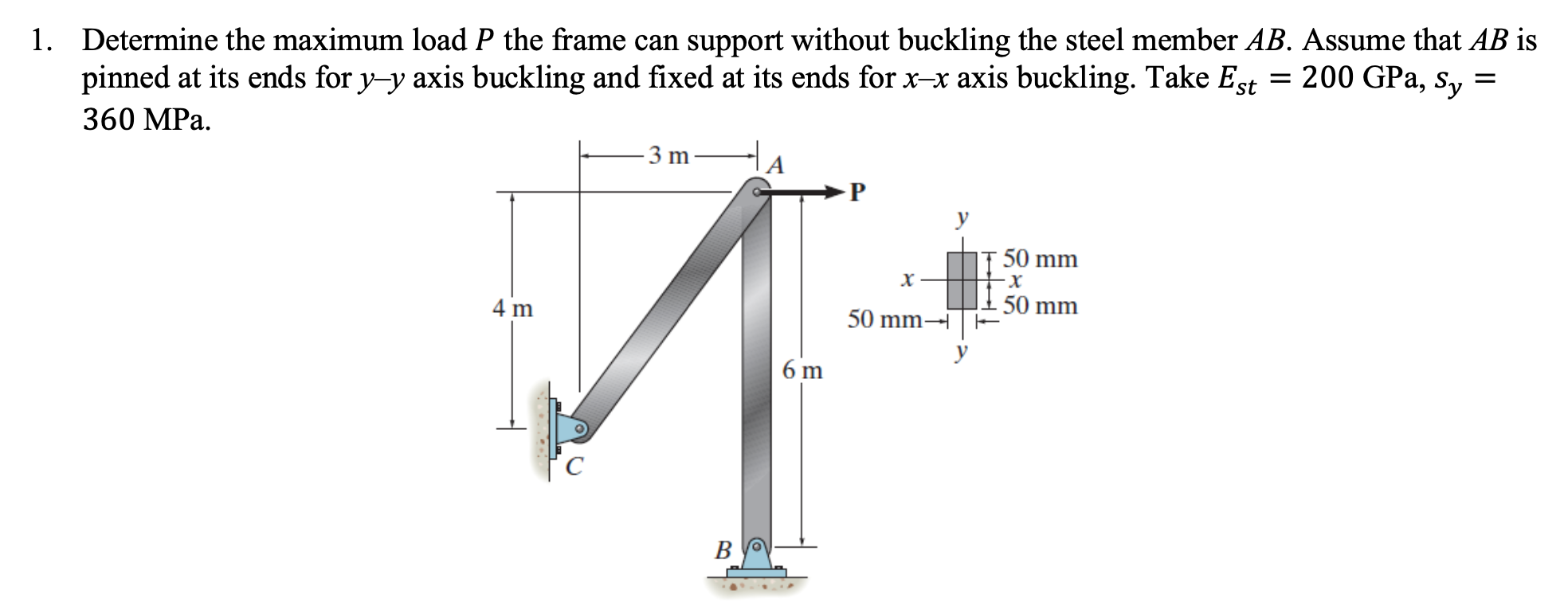

Determine the maximum load P the frame can support without buckling the steel member AB. Assume that AB is
pinned at its ends for y-y axis buckling and fixed at its ends for x-x axis buckling. Take Est=200GPa,sy=
360 MPa .
Determine the maximum load P the frame can

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
