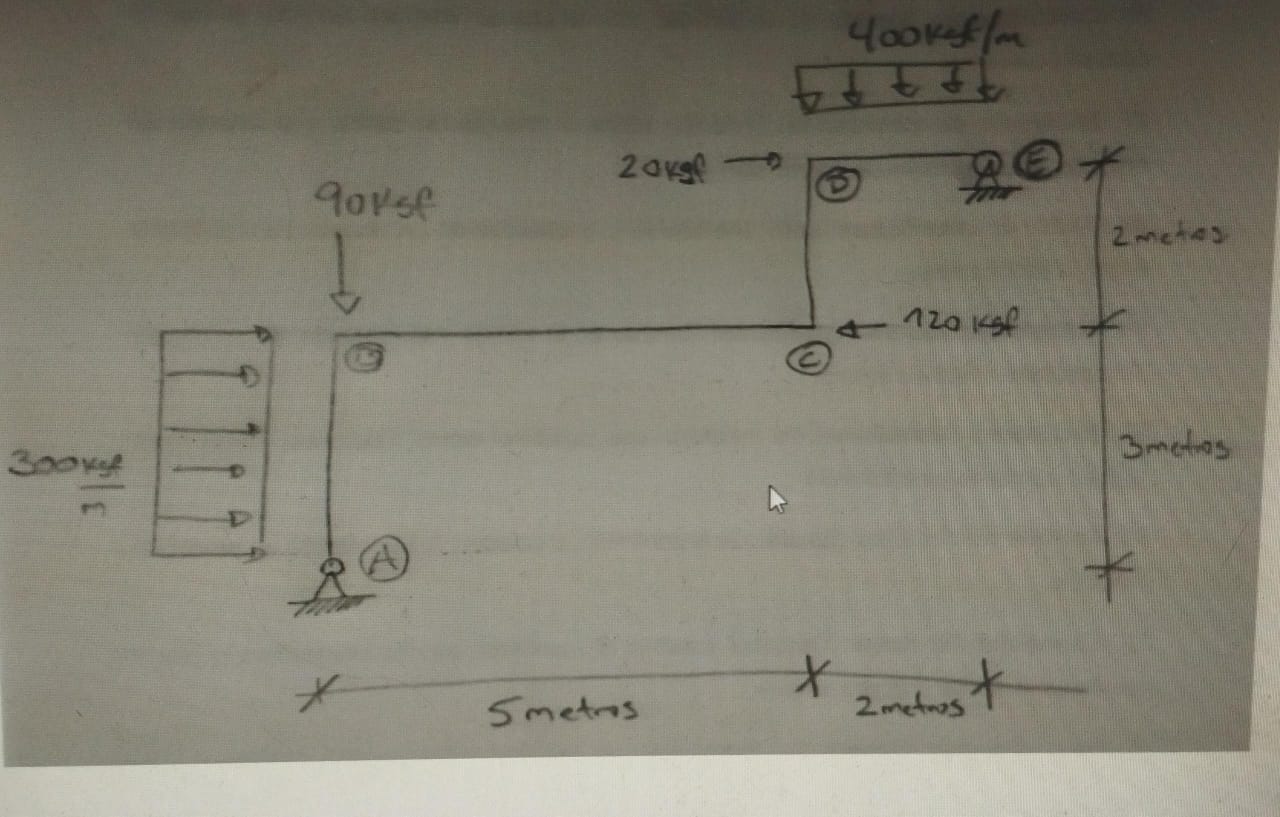

Question: Determine the structure shown using the force method: ( a ) Reactions to the supports. b ) Diagram showing bending moment. Assume says E *

Determine the structure shown using the force method:
(a) Reactions to the supports.
b) Diagram showing bending moment.
Assume says E*I =1. Do not take into account the effects of movements in the supports or temperature variation. Consider only bending effects.
Determine the structure shown using the force

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
