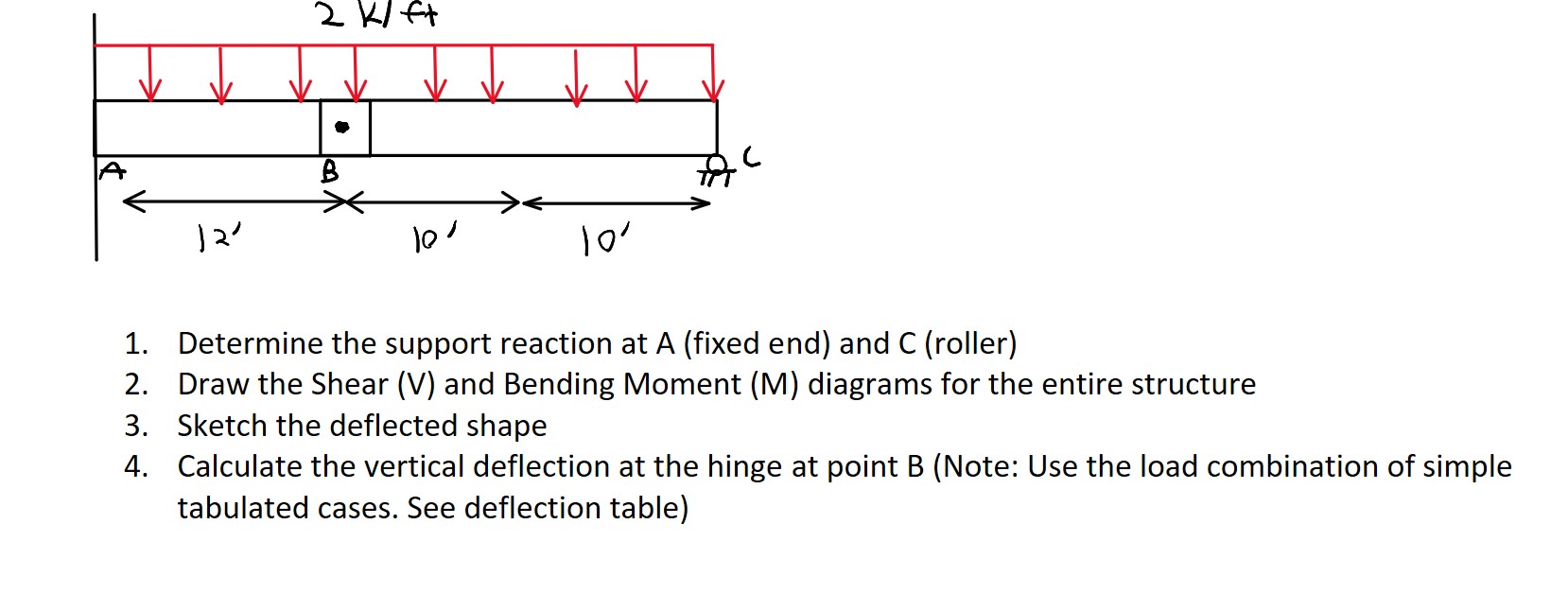

Determine the support reaction at A $($fixed end$)$ and C $($roller$)$

Draw the Shear $($V$)$ and Bending Moment $($M$)$ diagrams for the entire structure

Sketch the deflected shape

Calculate the vertical deflection at the hinge at point B $($Note: Use the load combination of simple

tabulated cases. See deflection table$)$ Table A$-3$

Displacements of Prismatic Beams
