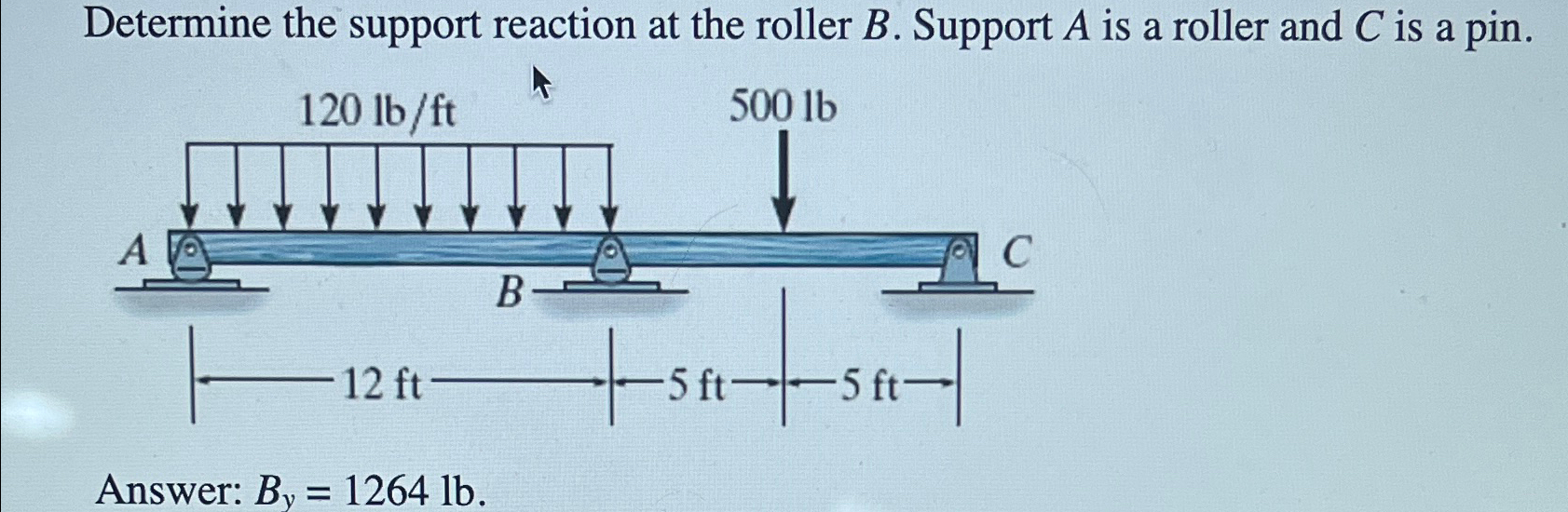

Question: Determine the support reaction at the roller B . Support A is a roller and C is a pin. Answer: B y = 1 2

Determine the support reaction at the roller B. Support A is a roller and C is a pin.
Answer: By=1264lb.
Determine the support reaction at the roller B .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
