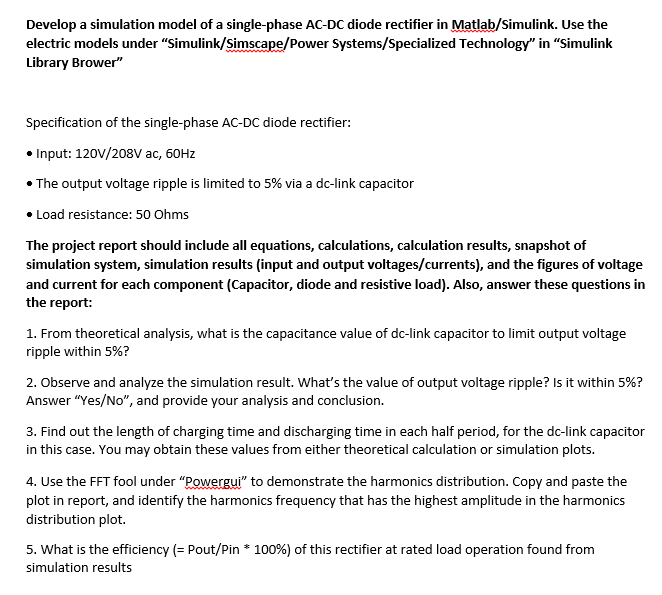

Develop a simulation model of a single-phase AC-DC diode rectifier in Matlab/Simulink. Use the electric models under "Simulink/Simscape/Power Systems/Specialized Technology" in "Simulink Library Brower" Specification of the single-phase AC-DC diode rectifier: . Input: 120V/208V ac, 60Hz The output voltage ripple is limited to 5% via a dc-link capacitor Load resistance: 50 Ohms The project report should include all equations, calculations, calculation results, snapshot of simulation system, simulation results (input and output voltages/currents), and the figures of voltage and current for each component (Capacitor, diode and resistive load). Also, answer these questions in the report: 1. From theoretical analysis, what is the capacitance value of dc-link capacitor to limit output voltage ripple within 5%? 2. Observe and analyze the simulation result, what's the value of output voltage ripple? Is it within 5%? Answer "Yes/No", and provide your analysis and conclusion 3. Find out the length of charging time and discharging time in each half period, for the dc-link capacitor in this case. You may obtain these values from either theoretical calculation or simulation plots 4. Use the FFT fool under "Powergui" to demonstrate the harmonics distribution. Copy and paste the plot in report, and identify the harmonics frequency that has the highest amplitude in the harmonics distribution plot. 5. What is the efficiency (-Pout/Pin * 100%) of this rectifier at rated load operation found from simulation results Develop a simulation model of a single-phase AC-DC diode rectifier in Matlab/Simulink. Use the electric models under "Simulink/Simscape/Power Systems/Specialized Technology" in "Simulink Library Brower" Specification of the single-phase AC-DC diode rectifier: . Input: 120V/208V ac, 60Hz The output voltage ripple is limited to 5% via a dc-link capacitor Load resistance: 50 Ohms The project report should include all equations, calculations, calculation results, snapshot of simulation system, simulation results (input and output voltages/currents), and the figures of voltage and current for each component (Capacitor, diode and resistive load). Also, answer these questions in the report: 1. From theoretical analysis, what is the capacitance value of dc-link capacitor to limit output voltage ripple within 5%? 2. Observe and analyze the simulation result, what's the value of output voltage ripple? Is it within 5%? Answer "Yes/No", and provide your analysis and conclusion 3. Find out the length of charging time and discharging time in each half period, for the dc-link capacitor in this case. You may obtain these values from either theoretical calculation or simulation plots 4. Use the FFT fool under "Powergui" to demonstrate the harmonics distribution. Copy and paste the plot in report, and identify the harmonics frequency that has the highest amplitude in the harmonics distribution plot. 5. What is the efficiency (-Pout/Pin * 100%) of this rectifier at rated load operation found from simulation results
