Question: Develop all necessary equations required 1 . Calculate reactions, moment, slope, and deflection at the supports . 2 . Input the deflection equation for the

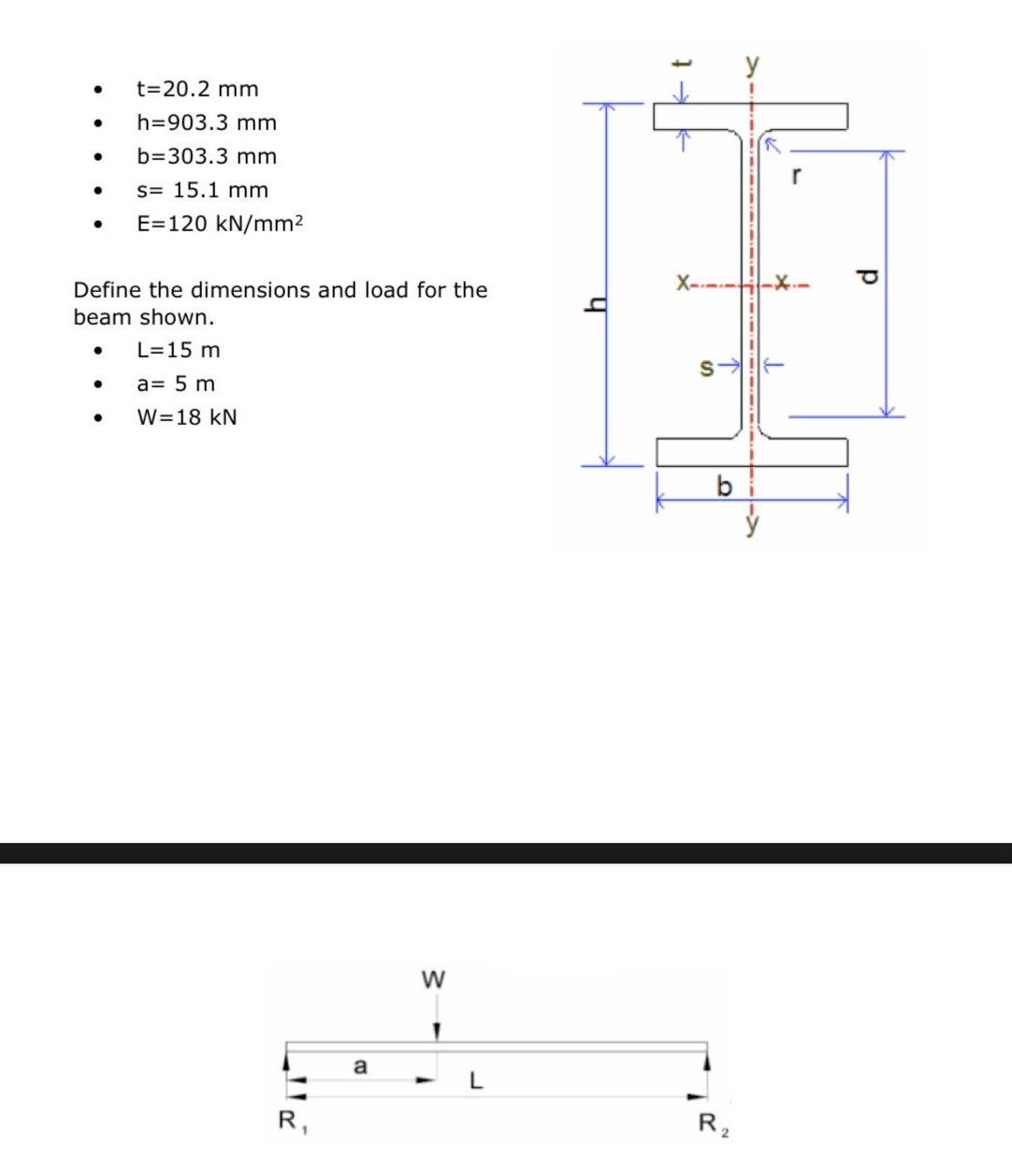

Develop all necessary equations required1.Calculate reactions, moment, slope, and deflection at the supports.2.Input the deflection equation for the deflection along the length of the beam.3.Differentiate the deflection equation to derive the equation for slope, moment, and shear.4.Plot the deflection, slope, moment, and shear.5.Calculate the average shear stress at the intersection between the flange and the web at the location of maximum shear.
Develop all necessary equations required 1 .

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
