Question: Digital Logic 11. For the decoder below determine the outputs (Y:) if the inputs are given below: a. A1 b. A1 0, AO 0, AO

Digital Logic

Digital Logic 11. For the decoder below determine the outputs (Y:) if

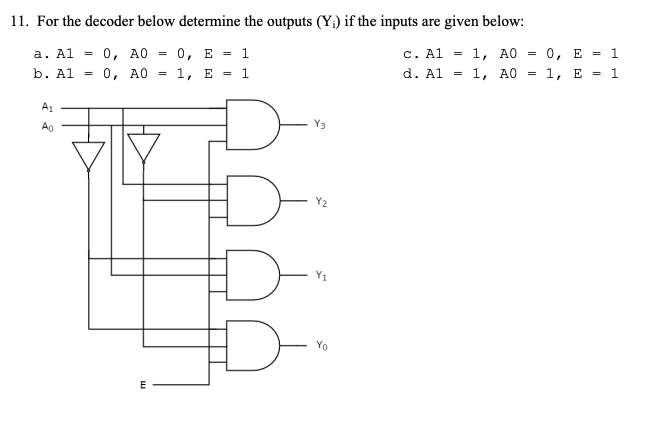

11. For the decoder below determine the outputs (Y:) if the inputs are given below: a. A1 b. A1 0, AO 0, AO 0, E = 1 1, E 1 c. A1 d. A1 1, AO 1, AO 0, E = 1 1, E 1 = A1 Ao Y3 Y2 Y1 Yo E

Step by Step Solution

There are 3 Steps involved in it
