Digital logic and computer design

Please no hand writing drawings.

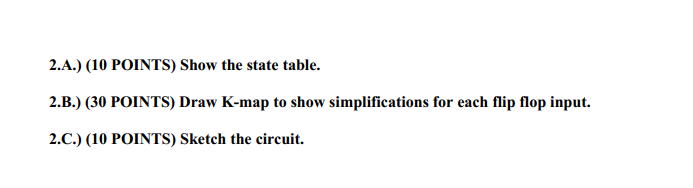

1. (50 POINTS) A divide-by-N counter is a special type of a counter with one output and no inputs. The output Y is high for one clock cycle out of every N, i.e. the output divides the clock frequency by N. As an example, the waveform for a divide-by-3 counter and the corresponding FSM for this counter are shown below: CLK/ 1. (50 POINTS) A divide-by-N counter is a special type of a counter with one output and no inputs. The output Y is high for one clock cycle out of every N, i.e. the output divides the clock frequency by N. As an example, the waveform for a divide-by-3 counter and the corresponding FSM for this counter are shown below: CLK/
