Question: digital logic CS 230 Digital Logic Design Assignment 2: Homework 2 [Total: 15 marks -2% 1. Simplify the following using Boolean Algebra: (a) (a+d)(6+C) (b)

digital logic digital logic CS 230 Digital Logic Design Assignment 2: Homework 2 [Total:

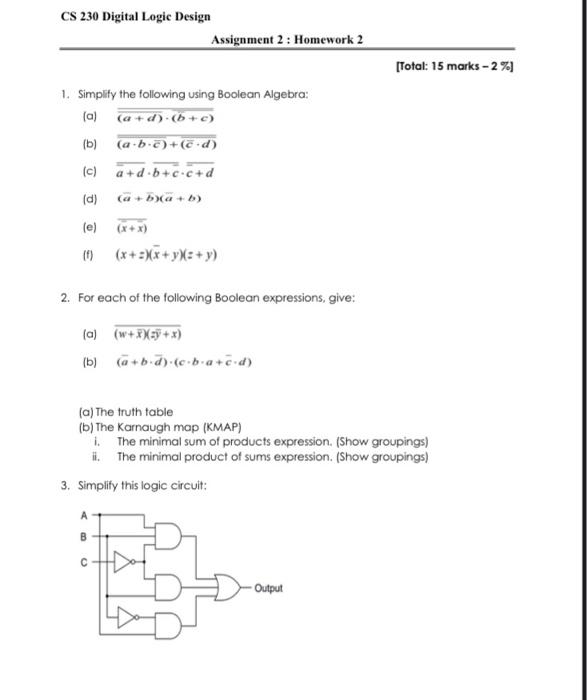

CS 230 Digital Logic Design Assignment 2: Homework 2 [Total: 15 marks -2% 1. Simplify the following using Boolean Algebra: (a) (a+d)(6+C) (b) (a-b-c)+(cd) (c) a+d+b+c.c+d (d) (a+ba+b) (e) (6) (x+3)(x + yX: + y) 2. For each of the following Boolean expressions, give: (a) (w+TX+ x) (b) (a+b.d).(e ba+c.d) (a) The truth table (b) The Karnaugh map (MAP) 1. The minimal sum of products expression (Show groupings) it. The minimal product of sums expression. (Show groupings) 3. Simplify this logic circuit: B Output

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
