Question: digital logic design , please complete answer Given the Boolean function F(A,B,C,D)= (1,3,4,8,13,14) + d(9,10,12,15) a) Implement Fusing a 4-to-1 MUX, and a Half-Subtractor only.

digital logic design , please complete answer digital logic design , please complete answer Given the Boolean function F(A,B,C,D)=

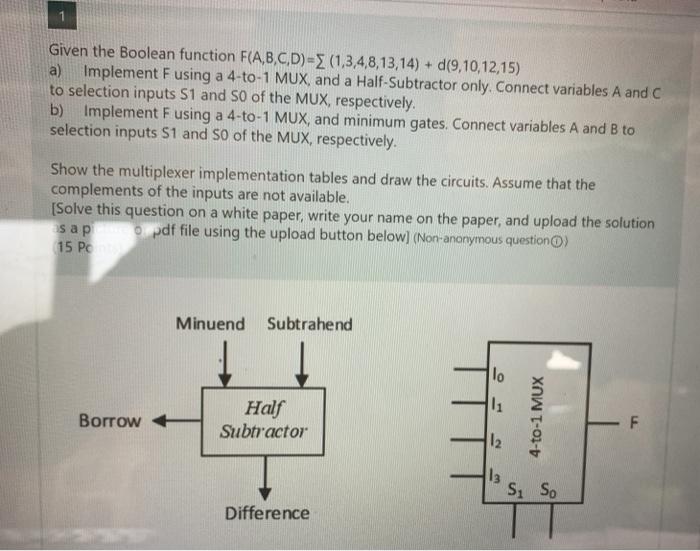

Given the Boolean function F(A,B,C,D)= (1,3,4,8,13,14) + d(9,10,12,15) a) Implement Fusing a 4-to-1 MUX, and a Half-Subtractor only. Connect variables A and C to selection inputs S1 and 50 of the MUX, respectively. b) Implement Fusing a 4-to-1 MUX, and minimum gates. Connect variables A and B to selection inputs S1 and so of the MUX, respectively. Show the multiplexer implementation tables and draw the circuits. Assume that the complements of the inputs are not available. [Solve this question on a white paper, write your name on the paper, and upload the solution sa po pdf file using the upload button below] (Non-anonymous question) 15 Pc Minuend Subtrahend lo Borrow Half Subtractor 4-to-1 MUX F 12 13 S. So Difference
