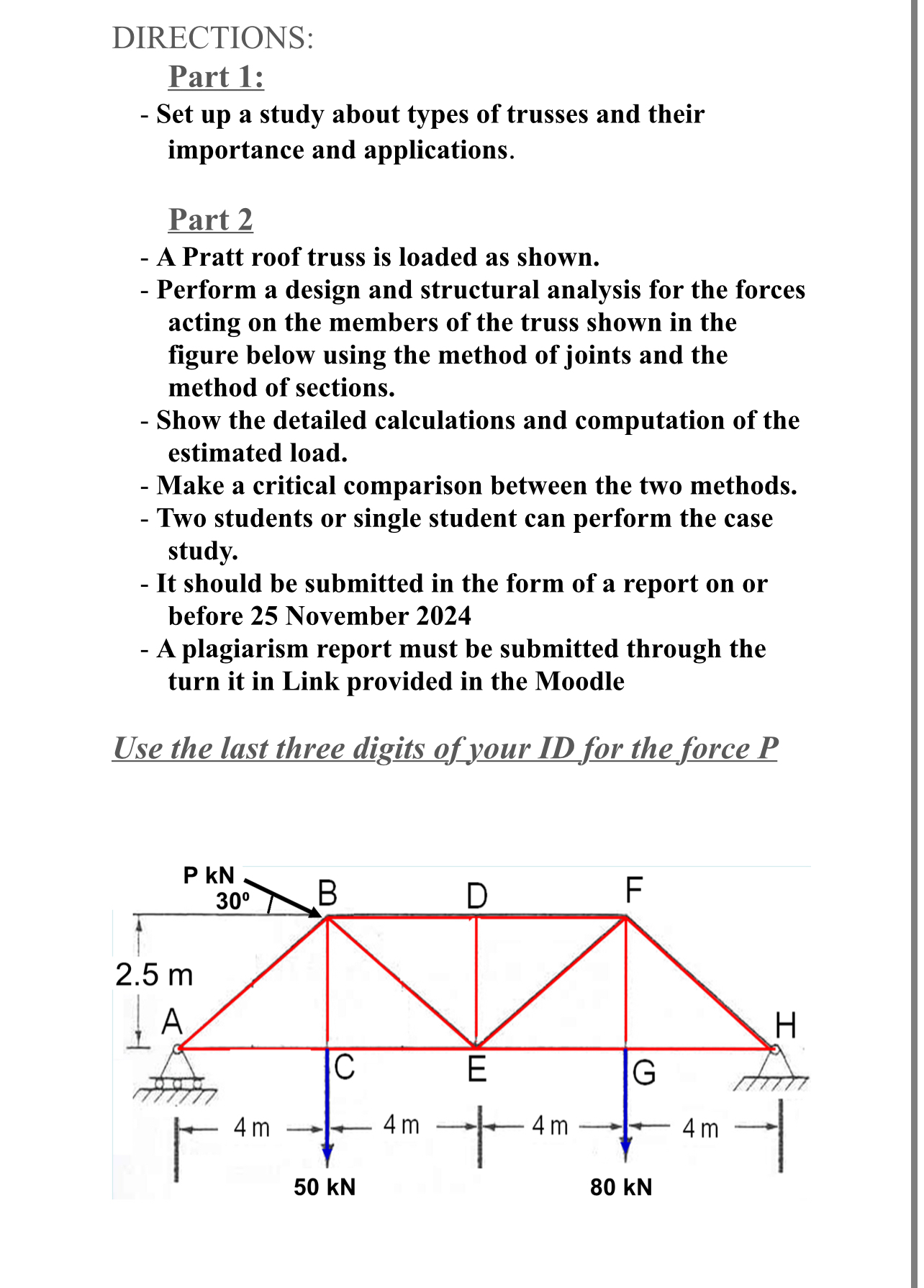

DIRECTIONS:

Part $1$:

Set up a study about types of trusses and their importance and applications.

Part $2$

A Pratt roof truss is loaded as shown.

Perform a design and structural analysis for the forces acting on the members of the truss shown in the figure below using the method of joints and the method of sections.

Show the detailed calculations and computation of the estimated load.

Make a critical comparison between the two methods.

Two students or single student can perform the case study.

It should be submitted in the form of a report on or before $25$ November $2024$

A plagiarism report must be submitted through the turn it in Link provided in the Moodle

Use the last three digits of your ID for the force P

last three digits of ID $=418$
